MFG:ALPHA
Part Number: AS173-73
MFG: ALPHA
Description: The AS173-73 is a PHEMT GaAs FET IC high linearity SPDT switch in a SOT-6 plastic package. This switch has been designe...
- Table of contents:
AS173-73
-
Suppliers
DataSheet
General Description
AS173-73 General Description
The AS173-73 is a PHEMT GaAs FET IC high linearity SPDT switch in a SOT-6 plastic package. This switch has been designed for use where extremely high linearity, low insertion loss and ultra miniature package size are required. It can be controlled with positive, negative or a combination of both voltages. Some standard implementations include antenna changeover, T/R and diversity switching over 2 W.The AS173-73 switch can be used in many analog and digital wireless communication systems including cellular, GSM and DECT applications.
AS173-73 Maximum Ratings
| Characteristic | Value |
| RF Input Power | 10 W Max. > 900 MHz, 0/+7 V Control |
| Control Voltage | -0.2 V, +8 V |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -65°C to +150°C |
| JC | 25°C/W |
AS173-73 Features
High Linearity (50 dBm IP3 @ 0.9 GHz)@ 3 V
Low Insertion Loss (0.35 dB @ 0.9 GHz)
Isolation (21 dB @ 0.9 GHz)
+3 V Operation
Ultra Miniature SOT-6 Package
PHEMT Process
Low Insertion Loss (0.35 dB @ 0.9 GHz)
Isolation (21 dB @ 0.9 GHz)
+3 V Operation
Ultra Miniature SOT-6 Package
PHEMT Process

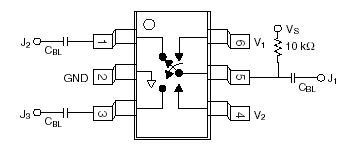

AS173-73 Connection Diagram
AS173-73
PDF/DataSheet Download
- Datasheet: AS173-73
- File Size: 41924 KB
- Manufacturer: ALPHA [Alpha Industries]
- Click here to Download
