AS191-73

Features: +2.5 to +5 V Linear Operation Harmonics H2, H3 > 65 dBc @ PIN = 34.5 dBm Low Insertion Loss (0.5 dB @ 0.9 GHz )High Isolation (27 dB @ 0.9 GHz) Ultra Miniature SOT-6 Package PHEMT ProcessPinoutSpecifications Characteristic Value RF Input Power 6 W Max.> 900 MHz,0/+5 V Con...

product image

AS191-73 Picture
See larger image
SeekIC No. : 004288215 Detail

AS191-73: Features: +2.5 to +5 V Linear Operation Harmonics H2, H3 > 65 dBc @ PIN = 34.5 dBm Low Insertion Loss (0.5 dB @ 0.9 GHz )High Isolation (27 dB @ 0.9 GHz) Ultra Miniature SOT-6 Package PHEMT Proce...

AS191-73 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AS191-73
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

+2.5 to +5 V Linear Operation
Harmonics H2, H3 > 65 dBc @ PIN = 34.5 dBm
Low Insertion Loss (0.5 dB @ 0.9 GHz )
High Isolation (27 dB @ 0.9 GHz)
Ultra Miniature SOT-6 Package
PHEMT Process



Pinout

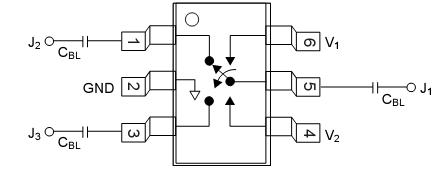

Connection Diagram


Specifications

Characteristic Value
RF Input Power 6 W Max.> 900 MHz,
0/+5 V Control
Control Voltage -0.2 V, +8 V
Operating Temperature -40°C to +85°C
Storage Temperature -65°C to +150°C
JC 25°C/W



Description

The AS191-73 is a PHEMT GaAs FET IC high linearity SPDT switch in a SOT-6 plastic package.This switch AS191-73 has been designed for use where extremely high linearity, low control voltage, high isolation, low insertion loss and ultra miniature package size are required. AS191-73 can be controlled with positive, negative or a combination of both voltages.Some standard implementations include antenna changeover, T/R and diversity switching over 3 W. The AS191-73 switch can be used in many analog and digital wireless communication systems including cellular, GSM and DECT applications.
