Purchase AS193-73, In-stock AS193-73 From SeekIC.
MFG:ALPHA
Part Number: AS193-73
MFG: ALPHA
Description: The AS193-73 is a PHEMT GaAs FET IC high linearity SPDT switch in a SOT-6 plastic package. This swit...
- Table of contents:
AS193-73
-
Suppliers
DataSheet
General Description
AS193-73 General Description
The AS193-73 is a PHEMT GaAs FET IC high linearity SPDT switch in a SOT-6 plastic package. This switch has been designed for use where extremely high linearity, low control voltage, high isolation, low insertion loss and ultra miniature package size are required. It can be controlled with positive, negative or a combination of both voltages.Some standard implementations include antenna changeover, T/R and diversity switching over 3 W. The AS193-73 switch can be used in many analog and digital wireless communication systems including cellular, GSM and UMTS applications.
AS193-73 Maximum Ratings
| Characteristic | Value |
| RF Input Power | 6 W Max. > 900 MHz, 0/+5 V Control |
| Control Voltage | -0.2 V, +8 V |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -65°C to +150°C |
| JC | 25°C/W |
AS193-73 Features
+2.5 to +5 V Linear Operation
Harmonics H2, H3 > 65 dBc @PIN = 34.5 dBm
Low Insertion Loss (0.35 dB @ 0.9 GHz)
High Isolation (24 dB @ 0.9 GHz)
Ultra Miniature SOT-6 Package
PHEMT Process
Harmonics H2, H3 > 65 dBc @PIN = 34.5 dBm
Low Insertion Loss (0.35 dB @ 0.9 GHz)
High Isolation (24 dB @ 0.9 GHz)
Ultra Miniature SOT-6 Package
PHEMT Process

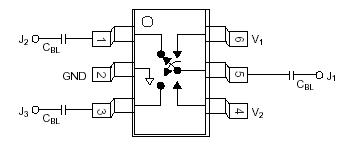

AS193-73 Connection Diagram
AS193-73
PDF/DataSheet Download
- Datasheet: AS193-73
- File Size: 27869 KB
- Manufacturer: ALPHA [Alpha Industries]
- Click here to Download
