Part Number: AS200-313



MFG: SKYWORKS

Package Cooled: QFN-6

D/C: 2005

Description: The AS200-313 is a 56 GHz PHEMT GaAs switch.Designed for transmit-receive applications,this devic...


Urgent Purchase

AS200-313 General Description


The AS200-313 is a 56 GHz PHEMT GaAs switch.Designed for transmit-receive applications,this device is capable of switching 2 W microwave signals with 3 V control while maintaining high linearity performance.The switch covers the entire 802.11a frequency ranges of 5.155.825 GHz.The low loss,high isolation,high linearity and low cost features make it ideal for wireless LAN systems in the 802.11a frequency band.



AS200-313 Maximum Ratings

Characteristic Value
RF Input Power 6 W max.> 900 MHz
0/+7 V control
Control Voltage -0.2 V, +7 V
Operating Temperature -40°C to +85°C
Storage Temperature -65°C to +150°C
JC 25 °C/W

AS200-313 Features

Operating frequency 56 GHz
High linearity 50 dBm IIP3
High power P-1 dB > 33 dBm
Low positive control voltage 3 V
Low cost ultra small QFN package

AS200-313 Typical Application

T/R switch in WLAN 802.11a systems

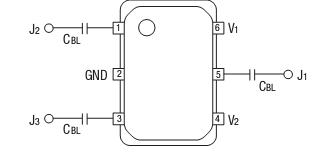

AS200-313 Connection Diagram

AS200-313 Connection Diagram

AS200-313 datasheet

AS200-313
PDF/DataSheet Download

  • Datasheet: AS200-313
  • File Size: 48414 KB
  • Manufacturer: SKYWORKS [Skyworks Solutions Inc.]
  • Click here to Download
