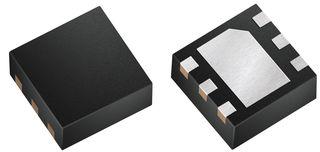

AS211-334

Number of Switches : Single
Switch Configuration : SPDT
Insertion Loss : 0.6 dB
Maximum Operating Temperature : + 85 C
Minimum Operating Temperature : - 40 C
Mounting Style : SMD/SMT
Packaging : Reel
Off Isolation (Typ) : 22 dB
Package / Case : DFN-6


Features:

P_1dB +30 dBm Typical @ +3 V
IP3 43 dBm Typical @ +3 V
Low Insertion Loss (0.3 dB @ 0.9 GHz)
Low DC Power Consumption
1.5 x 1.2 x 0.8 mm Land Grid Array (LGA) Package
PHEMT Process




Application

General Purpose Switch for Telecommunication Applications

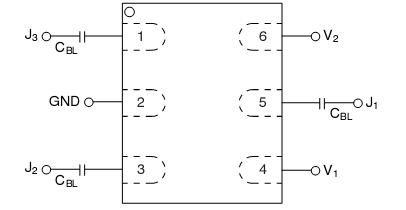

Pinout






Specifications

Characteristic	Value
RF Input Power	6 W > 500 MHz 0/+7 V Control
Control Voltage	-0.2 V, +8 V
Operating Temperature	-40°C to +85°C
Storage Temperature	-65°C to +150°C
JC	25°C/W

• P1 dB +30 dBm Typical @ +3 V
• IP3 43 dBm Typical @ +3 V
• Low Insertion Loss (0.3 dB @ 0.9 GHz)
• Low DC Power Consumption
• 1.5 x 1.2 x 0.8 mm Land Grid Array (LGA) Package

Description

The AS211-334 is an IC FET SPDT switch in a low cost miniature LGA package. The AS211-334 features lowinsertion loss and positive voltage operation with very low DC power consumption.

PHEMT GaAs IC SPDT Switch DC4 GHz

The AS211-334 is an IC FET SPDT switch in a low cost miniature LGA package. The AS211-334 features low insertion loss and positive voltage operation with very low DC power consumption. This general purpose switch can be used in a variety of telecommunications applications.

Parameters:

Technical/Catalog Information	AS211-334
Vendor	Skyworks Solutions Inc
Category	RF and RFID
RF Type	General Purpose
Package / Case	6-LGA
Frequency	0Hz ~ 4GHz
Features	SPDT
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AS211 334 AS211334 863 1009 2 ND 86310092ND 863-1009-2
