Part Number: AS2111
Description: The AS2111 dual voltage comparator is two AS111 type comparators in a single hermetic package. Featuri...
- Table of contents:
AS2111
-
Suppliers
DataSheet
General Description
AS2111 General Description
The AS2111 dual voltage comparator is two AS111 type comparators in a single hermetic package. Featuring all the same performance characteristics of the single, these duals offer in addition closer thermal tracking, lower weight, reduced insertion cost and smaller size than two singles. For additional information, see the AS111 data sheet.
The AS2111 is specified for operation over the -55°C to +125°C military temperature range.
AS2111 Maximum Ratings
Total Supply Voltage (V+ -- V-) ................................................36V
Output to Negative Supply Voltage (VOUT --V-).......................50V
Ground to Negative Supply Voltage (GND -- V-).......................30V
Differential Input Voltage.....................................................±30V
Input Voltage1.....................................................................±15V
Power Dissipation2...........................................................500mW
Output Short Circuit Duration..............................................10sec
Operating Temperature Range........................-55°C to +125°C
Storage Temperature Range.............................-65°C to 150°C
Lead Temperature (Soldering, 10sec)...............................300°C
Output to Negative Supply Voltage (VOUT --V-).......................50V
Ground to Negative Supply Voltage (GND -- V-).......................30V
Differential Input Voltage.....................................................±30V
Input Voltage1.....................................................................±15V
Power Dissipation2...........................................................500mW
Output Short Circuit Duration..............................................10sec
Operating Temperature Range........................-55°C to +125°C
Storage Temperature Range.............................-65°C to 150°C
Lead Temperature (Soldering, 10sec)...............................300°C
AS2111 Features
• Wide operating supply range: ±15V to a single +5V
• Low input current: 6 nA
• High sensitivity: 10V
• Wide differential input range: ±30V
• High output drive: 50mA, 50V
• Low input current: 6 nA
• High sensitivity: 10V
• Wide differential input range: ±30V
• High output drive: 50mA, 50V

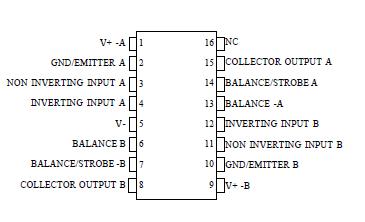

AS2111 Connection Diagram
AS2111
