AS216-339

Features:

T/R Switch
High Isolation (30 dB @ 0.9 GHz)
Designed for Mobile Radio Applications
P-1 dB = 10 W @ 0.9 GHz, 25°C
High Intercept Point (IP3 +63dBm,@ 0.9 GHz)

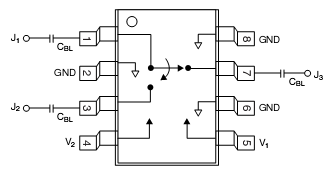

Pinout




Description

The AS216-339 is a high power IC FET SPDT switch in a plastic SOIC-8 exposed paddle package.This switch has been designed for use where extremely high linearity is required.It can be controlled with positive, negative or a combination of both voltages. Some standard implementations include antenna changeover, T/R and diversity switching over 2 W.The AS216-339  can be used in many analog and digital wireless communication systems including cellular, GSM and PCS applications.
