AS22AP suppliers, AS22AP price trend, AS22AP PDF download, circuit diagram from SeekIC

Purchase AS22AP, In-stock AS22AP From SeekIC.

MFG:NKK Switches of America Inc Category:Switches

Five Points

Category: Switches

MFG: NKK Switches of America Inc

Descriptions: SWITCH SLIDE DPDT .4VA PCB

Price Break

1
25
100
250
500
1000

Unit Price

5.18000
3.36000
3.07200
2.88000
2.73600
2.68800

Extended Price

5.18
84.00
307.20
720.00
1368.00
2688.00

(All prices are in USD) Prices for reference only

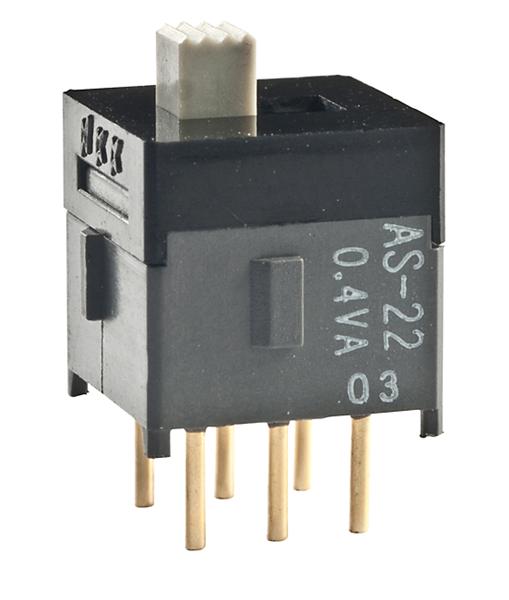

SWITCH SLIDE DPDT .4VA PCB

Technical/Catalog Information	AS22AP
Vendor	NKK Switches of America Inc
Category	Switches
Mounting Type	Through Hole
Circuit	DPDT
Switch Function	On-On
Contact Rating @ Voltage	0.4VA @ 28VAC/DC
Termination Style	PC Pin
Orientation	Vertical
Actuator Type	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AS22AP AS22AP 360 2127 ND 3602127ND 360-2127
