AS2431AC3VSA General Description


The AS2431 is a three-terminal adjustable shunt regulator providing a highly accurate bandgap reference. The adjustable shunt regulator is ideal for a wide variety of linear applications that can be implemented using external components to obtain adjustable currents and voltages.

In the standard shunt configuration, the combination of low temperature coefficient (TC), sharp turn-on characteristics, low output impedance and programmable output voltage make this precision reference an excellent error amplifier.

The AS2431 is a direct replacement for the AS431 in low voltage, low current applications. It is also available in the very small footprint SOT-23.



AS2431AC3VSA Maximum Ratings

Parameter Symbol Rating Units
Cathode-Anode Reverse Breakdown VKA 18 V
Anode-Cathode Forward Current IAK 1 A
Operating Cathode Current IKA 100 mA
Reference Input Current IREF 1 mA
Continuous Power Dissipation at 25°C
TO-92
8L SOIC
SOT-89
SOT-23/5L		 PD 775
750
1000
200		 mW
mW
mW
mW
Junction Temperature TJ 150 °C
Storage Temperature TSTG -65 to 150 °C
Lead Temperature Soldering 10 Seconds TL 300 °C

AS2431AC3VSA Features

* Temperature-compensated: 15 ppm/°C
* Trimmed bandgap reference
* Internal amplifier with 100 mA capability
* Multiple temperature ranges
* Low frequency dynamic output impedance: < 450 m
* Low output noise

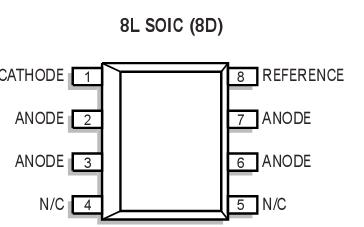

AS2431AC3VSA Connection Diagram

AS2431AC3VSA Connection DiagramAS2431AC3VSA Connection Diagram

AS2431AC3VSA datasheet

AS2431AC3VSA
PDF/DataSheet Download
