General Description
AS3689XF General Description
The AS3689XF is a highly-integrated CMOS Power and Lighting Management Unit to supply power to LCD-and cameramodules in mobile telephones, and other 1-cell Li+ or 3-cell NiMH powered devices.
The Device incorporates one low-power, lowdropout regulator (LDO), one Step Up DC/DC Converter for white backlight LEDs, one high-power Charge Pump for camera flash LEDs, one Analogto- Digital Converter, support for up to 11 current sinks, a two wire serial interface, and control logic all onto a single device. Output voltages and output currents are fully programmable.
The AS3689XF is a successor to the austrimicrosystems AS3681 with several additional features (Charge Pump Automatic Up Switching, Extended timer features, autonomous logarithmic and linear PWM dimming, LED pattern generator, DCDC step up overvoltage protection, improved Charge Pump and a fourth high current sink).

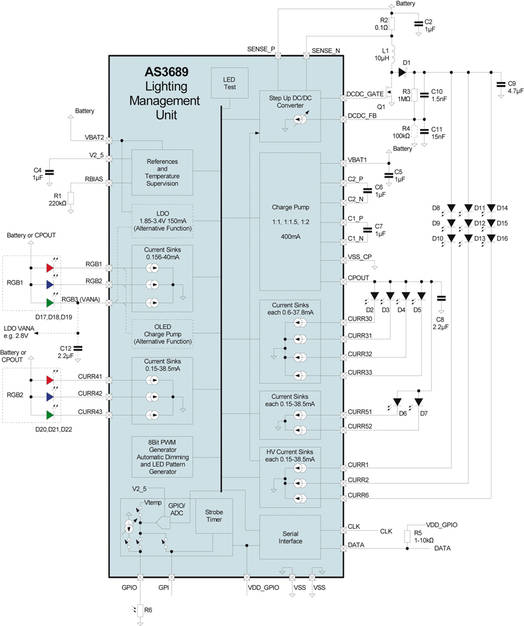

AS3689XF Connection Diagram
