AS3802

Features: Supports dual mode operation. -50 to +50db gain control guaranteed. Single 3.6V supply.Temperature and supply stabilized.Power down feature. 80MHz to 250MHz operation.Silicon BiCMOS process.Miniature surface mount 16 pin, 150 mil SSOP package.ApplicationDigital cellular systems with rece...

product image

AS3802 Picture
See larger image
SeekIC No. : 004288321 Detail

AS3802: Features: Supports dual mode operation. -50 to +50db gain control guaranteed. Single 3.6V supply.Temperature and supply stabilized.Power down feature. 80MHz to 250MHz operation.Silicon BiCMOS proces...

AS3802 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AS3802
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Supports dual mode operation.
-50 to +50db gain control guaranteed.
Single 3.6V supply.
 Temperature and supply stabilized.
Power down feature.
80MHz to 250MHz operation.
Silicon BiCMOS process.
Miniature surface mount 16 pin, 150 mil SSOP package.


Application

Digital cellular systems with receiving methods:CDMA/FDM, TDMA/FDM, FM/FDM and TDMA/TDD.
 Examples: IS-95 CDMA, IS-54 DAMPS, AMPS,PWT.
Cordless phones analog/digital.
General purpose linear IF amp's.
WLL / WLAN


Pinout

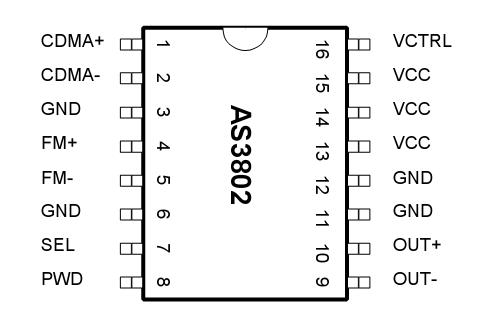

Connection Diagram


Specifications

Symbol Parameter min max Unit Note
VDD Positive Supply Voltage -0.5 7 V
GND Analog Ground 0 0 V
Vin Voltage at every Input Pin) Gnd-0.5 VDD+0.5 V
Iin Input Current
(into any pin except supply pins and
except low leakage pin)		 -40 40 mA
Iin_15 Input Current into Low Leakage Pin -25 25 mA
H Humidity Noncondensing       1)
ESD Electrostatic Discharge   1000 V 2)
Tstg Storage Temperature -55 125 deg C
Tlead Lead Temperature   260 deg C 3)



Description

The AS3802 is a gain controlled amplifier designed for the receive section of dual mode CDMA/FDM,TDMA/FDM or FM/FDM cellular phones.

Key specifications like gain range noise figure, AS3802, IP3,temperature range and other specifications are designed to be in line with the IS-95 Standard for CDMA cellular communications.

The AS3802 is designed for narrow band IF applications but can also be used in wideband applications.
