General Description
AS4024 Maximum Ratings
| SYMBOLS | AS4024 | AS4028 | Units | ||
| Maximum working peak stand-off voltage | VWM | 18.0 | 20.0 | Volts | |
| Minimum reverse breakdown voltage at 100mA | V(BR) | 20.0 | 24.0 | Volts | |
| Maximum reverse breakdown voltage at 100mA | V(BR) | 28.0 | 32.0 | Volts | |
| Maximum clamping voltage for 10ms/10ms exponentially decaying waveform at IPP=80A |
VC | 38.0 | 40.0 | Volts | |
| Maximum average rectified forward current at TC=150°C | I(AV) | 40.0 | Amps | ||
| Peak forward surge current, 8.3ms single half sine-wave on rated load (JEDEC Method) |
IFSM | 700.0 | Amps | ||
| Maximum instantaneous forward voltage at 100A(NOTE 1) | VF | 0.99 | |||
| Non- repetitive peak reverse surge current for 10ms/10ms exponentially decaying waveform (see figure 3) |
IRSM | 75.0 | Amps | ||
| Maximum reverse leakage current at rated VWM | TJ=25°C | IR | 1.0 | A | |
| TJ=175°C | 50.0 | ||||
| Maximum thermal resistance junction to case(NOTE 2) | RJC | 0.9 | °C/W | ||
| Operating junction and storage temperature range | TJ, TSTG | -55 to +200 | °C | ||
AS4024 Features
Plastic package has Underwriters Laboratory Flammability Classification 94V-0
High temperature stability due to unique oxide passivation
Patented Passivated Anisotropic Rectifier (PAR) construction
Integrally molded heatsink provides a very low thermal resistance for maximum heat dissipation
Low leakage current at TJ=175°C
Low forward voltage drop
Ideally suited for alternator rectification and load dump protection
High temperature soldering guaranteed:260°C for 10 seconds at terminals
High temperature stability due to unique oxide passivation
Patented Passivated Anisotropic Rectifier (PAR) construction
Integrally molded heatsink provides a very low thermal resistance for maximum heat dissipation
Low leakage current at TJ=175°C
Low forward voltage drop
Ideally suited for alternator rectification and load dump protection
High temperature soldering guaranteed:260°C for 10 seconds at terminals
AS4024
PDF/DataSheet Download
- Datasheet: AS4024
- File Size: 118490 KB
- Manufacturer: GE [General Semiconductor]
- Click here to Download
- ·AS4028
- GE [General Semiconductor]
- PASSIVATED ANISOTROPIC RECTIFIER TECHNOLOGY
- 118490 KB
- ·AS4040AM0
- Voltage Reference
- 371750 KB
- ·AS4040AM-2
- Analog IC
- 131288 KB
- ·AS4040AM-3
- Analog IC
- 131288 KB
- ·AS4040AN0
- Voltage Reference
- 371750 KB
- ·AS4040AN-1
- Analog IC
- 131288 KB
- ·AS4040AN-2
- Analog IC
- 131288 KB
- ·AS4040AN-3
- Analog IC
- 131288 KB
AS4024 Relative Products
AS400X
The AS400X is designed as one kind of serial digital audio passive signal splitter device that answers a demand from systems engineers for an economical way of dividing a single serial digital audio signal between two destinations. And a modest signal loss i...
AS400M
The AS400M is designed as one kind of serial digital audio passive signal splitter device that answers a demand from systems engineers for an economical way of dividing a single serial digital audio signal between two destinations. And a modest signal loss i...
AS39S010010

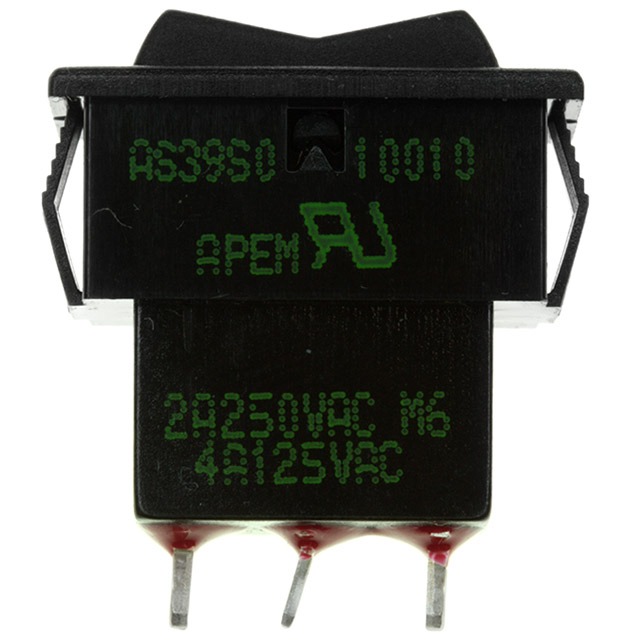

SWITCH ROCKER SPDT 4A SLD LUG
