AS4C256K16E0

The AS4C256K16E0 is a high performance 4 megabit CMOS Dynamic Random Access Memory (DRAM) organized as 262,144 words by 16 bits. The AS4C256K16E0 is fabricated with advanced CMOS technology and designed with innovative design techniques resulting in high
speed, extremely low power and wide operating margins at component and system levels.

The AS4C256K16E0 features a high speed page mode operation in which high speed read, write and read-write are performed on any of the 512 × 16 bits defined by the column address. The asynchronous column address uses an extremely short row address capture time to ease the system level timing constraints associated with multiplexed addressing. Very fast CAS to output access time eases system design.

Refresh on the 512 address combinations of A0 to A8 during an 8 ms period is accomplished by performing any of the following:

• RAS-only refresh cycles
• Hidden refresh cycles
• CAS-before-RAS refresh cycles
• Normal read or write cycles
• Self-refresh cycles*

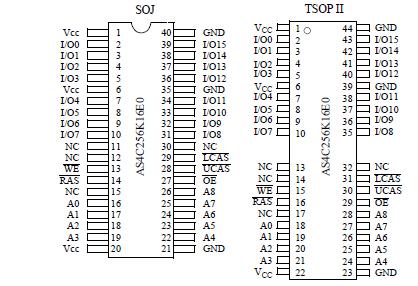

The AS4C256K16E0 is available in standard 40-pin plastic SOJ and 40/44-pin TSOP II packages compatible with widely available automatedtesting and insertion equipment. System level features include single power supply of 5V ± 0.5V tolerance and direct interface with TTL logic families.
