AS4LC1M16E5

Features: • Organization: 1,048,576 words × 16 bits• High speed - 50/60 ns RAS access time - 20/25 ns hyper page cycle time - 12/15 ns CAS access time• Low power consumption - Active: 500 mW max (-60) - Standby: 3.6 mW max, CMOS DQ• Extended data out• 1024 refresh cyc...

product image

AS4LC1M16E5 Picture
See larger image
SeekIC No. : 004288367 Detail

AS4LC1M16E5: Features: • Organization: 1,048,576 words × 16 bits• High speed - 50/60 ns RAS access time - 20/25 ns hyper page cycle time - 12/15 ns CAS access time• Low power consumption - Acti...

AS4LC1M16E5 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AS4LC1M16E5
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Organization: 1,048,576 words × 16 bits
• High speed
  - 50/60 ns RAS access time
  - 20/25 ns hyper page cycle time
  - 12/15 ns CAS access time
• Low power consumption
  - Active: 500 mW max (-60)
  - Standby: 3.6 mW max, CMOS DQ
• Extended data out
• 1024 refresh cycles, 16 ms refresh interval
  - RAS-only or CAS-before-RAS refresh or self-refresh
• Read-modify-write
• TTL-compatible, three-state DQ
• JEDEC standard package and pinout
  - 400 mil, 42-pin SOJ
  - 400 mil, 44/50-pin TSOP II
• 3V power supply (AS4LC1M16E5)
• 5V tolerant I/Os; 5.5V maximum VIH
• Industrial and commercial temperature available

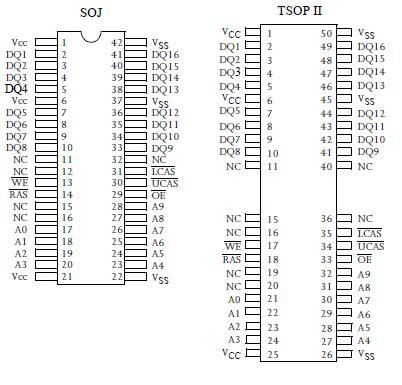

Pinout

Connection Diagram


Specifications

Parameter Symbol Min Max Unit
Input voltage VDQ -1.0 +5.5 V
Power supply voltage VCC -1.0 +4.0 V
Storage temperature (plastic) TSTG -65 +150 °C
Soldering temperature * time TSOLDER 260 * 10 °C * sec
Power dissipation PD 0.6 W
Short circuit output current Iout 50 mA
