Features:

- Contact-less high resolution encoding over a full turn of
360 degrees
- Flexible system due to user programmable incremental
output modes:
- 10, 9, 8 or 7 bit user programmable resolution
- Quadrature A/B and index output signal
- Single channel output and direction indication
- U-V-W commutation signals for brush-less DC motors
- Absolute angular position mode:
- 10-bit resolution providing 1024 absolute positions per 360 degrees (step size ~ 0.35 deg)
- Synchronous serial interface (SSI) output for absolute position data
- Pulse width modulated (PWM) output, duty cycle proportional to angle
- User programmable zero / index position
- Failure detection mode for magnet placement monitoring
- Rotational speeds up to 10,000 rpm (incremental output)
- Push button functionality detects movement of magnet in Z-axis
- Two supply voltages: 3.3 V or 5 V
- Wide temperature range: - 40°C to + 125°C
- Small package: SSOP 16 (5.3mm x 6.2mm)


Application

- Industrial applications such as:
- Motion control
- Robotics
- Brush-less DC motor commutation
- Power tools
- Automotive applications:
- Steering wheel position sensing
- Gas pedal position sensing
- Transmission gearbox encoder
- Headlight position control
- Power seat position indicator
- Office equipment: printers, scanners, copiers
- Replacement of optical encoders
- Front panel rotary switches and potentiometers

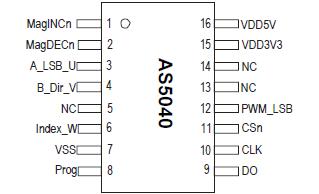

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Unit
Note
VDC supply voltage at pin VDD5V
VDD5V
-0.3
7
V

DC supply voltage at pin VDD3V3
VDD3V3
5
V

Input pin voltage
Vin
-0.3
VDD5V+0.3
V

Input current (latchup immunity)
Iscr
-100
100
mA
 Norm: Jedec 17
Electrostatic discharge
ESD
±1
KV
 Norm: MIL 883 E method 3015
Storage temperature
Tstg
-55
125
°C
 Min 67°F ; Max +257°F
Body temperature (Lead-free package)
TBody
250
°C
 t=20 to 40s, Norm: IPC/JEDEC J-Std-020B Lead finish 100% Sn "matte tin"
Humidity non-condensing
H
5
85
%




Description

The AS5040 is a system-on-chip, combining integrated Hall elements, analog front end and digital signal processing in a single device. It provides incremental output signals and the absolute angular position of a magnet that is placed either above or below the device.

The AS5040 can be configured to specific customer requirements by programming the integrated OTP (one time programmable) register. An internal voltage regulator allows the AS5040 to operate at either 3.3 V or 5 V supplies.
