Product Details

Description

Features:

•Organization: 262,144 words × 32 or 36 bits
•Fast clock to data access:7.5/8.5/10 ns
•Fast OE access time: 3.5/4.0/4.0 ns
•Fully synchronous flow-through operation
•Asynchronous output enable control
•Available in 100-pin TQFP package
•Individual byte write and global write
•Multiple chip enables for easy expansion
•3.3V core power supply
•2.5V or 3.3V I/O operation with separate VDDQ
•Linear or interleaved burst control
•Snooze mode for reduced power-standby
•Common data inputs and data outputs

Pinout

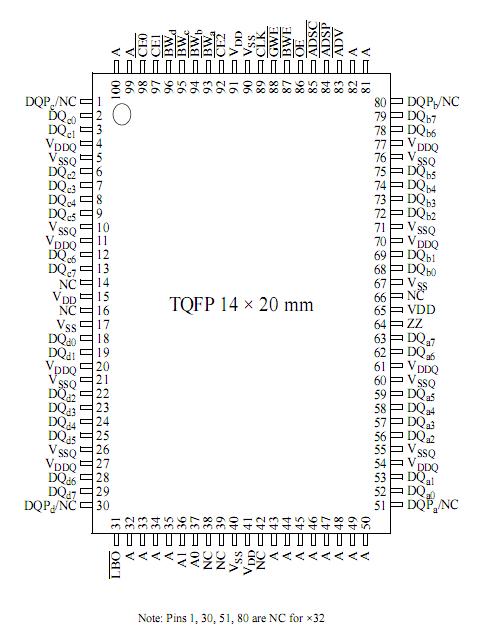

Connection Diagram

Specifications

Parameter	Symbol	Min	Max	Unit
Power supply voltage relative to GND	VDD, VDDQ	0.5	+4.6	V
Input voltage relative to GND (input pins)	VIN	0.5	VDD + 0.5	V
Input voltage relative to GND (I/O pins)	V_IN	0.5	VDDQ + 0.5	V
Power dissipation	P_d		1.8	W
Short circuit output current	I_OUT		20	mA
Storage temperature	T_stg	65	+150	oC
Temperature under bias	T_bias	65	+135	oC
