AS7C33256NTF18B

Features:

·Organization: 262,144 words X 18 bits
·NTD^TM architecture for efficient bus operation
·Fast clock to data access: 7.5/8.0/10.0 ns
·Fast OEaccess time: 3.5/4.0 ns
·Fully synchronous operation
·Flow-through mode
·Asynchronous output enable control
·Available in 100-pin TQFP package
·Byte write enables
·Clock enable for operation hold
·Multiple chip enables for easy expansion
·3.3V core power supply
·2.5V or 3.3V I/O operation with separate V_DDQ
·Self-timed write cycles
·Interleaved or linear burst modes
·Snooze mode for standby operation

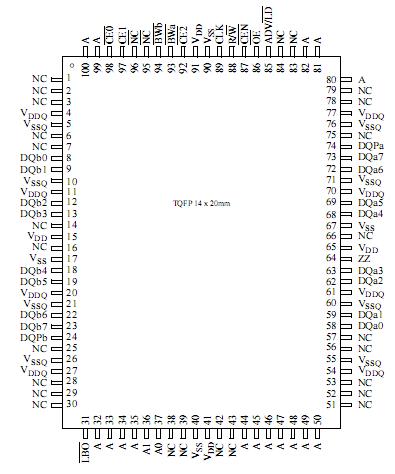

Pinout




Specifications

Parameter	Symbol	Min	Max	Unit
Power supply voltage relative to GNDV	VDD,VDDQ	-0.5	+4.6	V
Input voltage relative to GND (input pins)	VIN	-0.5	VDD+0.5	V
Input voltage relative to GND (I/O pins)	VIN	-0.5	VDDQ+0.5	V
Power dissipation	PD	-	1.8	W
DC output current	IOUT	-	20	mA
Storage temperature (plastic)	Tstg	-65	+150	oC
Temperature under bias	Tbias	-65	+135	oC

Note: Stresses greater than those listed in this table may cause permanent damage to the device. This is a stress rating only, and functional operation of the device at these or any other conditions outside those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions may affect reliability.

Description

The AS7C33256NTF18B family is a high performance CMOS 4 Mbit synchronous Static Random Access Memory (SRAM)
organized as 262,144 words !á 18 bits and incorporates a LATE Write.
This variation of the 4Mb+ synchronous SRAM uses the No Turnaround Delay (NTD^TM) architecture, featuring an enhanced write operation that improves bandwidth over flowthrough burst devices. In a normal flowthrough burst device, the write data,command, and address are all applied to the device on the same clock edge. If a read command follows this write command,the system of AS7C33256NTF18B must wait for one 'dead' cycle for valid data to become available. This dead cycle can significantly reduce overall bandwidth for applications requiring random access or read-modify-write operations.
NTD^TM AS7C33256NTF18B devices use the memory bus more efficiently by introducing a write latency which matches the  one-cycle flow-
through read latency. Write data is applied one cycle after the write command and address, allowing the read pipeline to clear.
With NTD^TM, write and read operations can be used in any order without producing dead bus cycle.
Assert R/W low to perform write cycles. Byte write enable controls write access to specific bytes, or can be tied low for full 18 bit writes. Write enable signals, along with the write address, are registered on a rising edge of the clock. Write data is applied to the device one clock cycle later. Unlike some asynchronous SRAMs, output enable OE
 does not need to be toggled for write operations; it can be tied low for normal operations. Outputs go to a high impedance state when the device is de-selected by any of the three chip enable inputs.
Use the ADV (burst advance) input to perform burst read, write and deselect operations. When ADV is high, external addresses, chip select, R/W  pins are ignored, and internal address counters increment in the count sequence specified by the LBO control. Any device operations, including burst, can be stalled using the CEN=1, the clock enable input.
The AS7C33256NTF18B operates with a 3.3V ±5% power supply for the device core (V_DD). DQ circuits use a separate power supply (V_DD) that operates across 2.5V or 3.3V ranges. These devices are available in a 100-pin TQFP package.
