AS7C3364NTD36B
-
Suppliers
DataSheet
General Description
AS7C3364NTD36B Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Power supply voltage relative to GND |
VDD,VDDQ |
0.5 |
+4.6 |
V |
|
Input voltage relative to GND (input pins) |
VIN |
0.5 |
VDD + 0.5 |
V |
|
Input voltage relative to GND (I/O pins) |
VIN |
0.5 |
V DDQ + 0.5 |
V |
|
Power dissipation |
Pd |
1.8 |
W | |
|
Short circuit output current |
IOUT |
20 |
mA | |
|
Storage temperature |
Tstg |
65 |
+150 |
|
|
Temperature under bias |
Tbias |
65 |
+135 |
AS7C3364NTD36B Features
Organization: 65,536 words * 32 or 36 bits
NTDTM architecture for efficient bus operation
Fast clock speeds to 200 MHz
Fast clock to data access: 3.0/3.5/4.0 ns
FastOE access time: 3.0/3.5/4.0 ns
Fully synchronous operation
Asynchronous output enable control
Available in 100-pin TQFP package
Byte write enable
Clock enable for operation hold
Multiple chip enables for easy expansion
3.3V core power supply
2.5V or 3.3V I/O operation with separate VDDQ
Self-timed write cycles
Interleaved or linear burst modes
Snooze mode for reduced power standby
NTDTM architecture for efficient bus operation
Fast clock speeds to 200 MHz
Fast clock to data access: 3.0/3.5/4.0 ns
FastOE access time: 3.0/3.5/4.0 ns
Fully synchronous operation
Asynchronous output enable control
Available in 100-pin TQFP package
Byte write enable
Clock enable for operation hold
Multiple chip enables for easy expansion
3.3V core power supply
2.5V or 3.3V I/O operation with separate VDDQ
Self-timed write cycles
Interleaved or linear burst modes
Snooze mode for reduced power standby

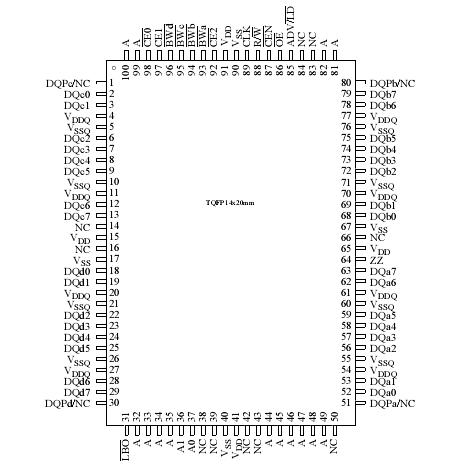

AS7C3364NTD36B Connection Diagram
