Product Details

Description



Features:

 One input to four Output Buffer/Driver
 General-purpose or PCI-X clock buffer
 Buffers all frequencies from DC to 140 MHz
 Output-to-output skew less than 100 pS
 Space-saving 8-pin TSSOP Package
 3.3V operation

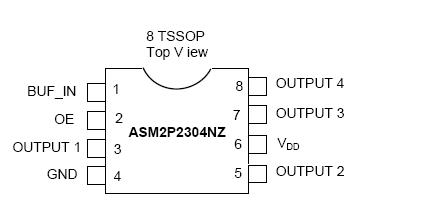

Pinout

Connection Diagram


Specifications

Parameter Min Max Unit
Supply Voltage to Ground Potential -0.5 7 V
DC Input Voltage (Except REF) -0.5 VDD + 0.5 V
DC Input Voltage (REF) -0.5 7 V
Storage Temperature -65 +150 °C
Max. Soldering Temperature (10 sec)   260 °C
Junction Temperature   150 °C
Static Discharge Voltage
(As per JEDEC STD22- A114-B)		   2000 V



Description

The ASM2P2304NZ is a low-cost buffer designed to distribute high-speed clocks for PCI-X and other applications. The device operates at 3.3V and outputs can run up to 140 MHz.
