ASMT-RR45-AQ902

Forward Current : 20 mA
Packaging : Reel
Forward Voltage : 2 V
Illumination Color : Red
Lens Color/Style : Untinted Diffused
LED Size : 1.6 mm x 0.8 mm x 0.45 mm
Wavelength/Color Temperature : 622 nm
Luminous Intensity : 120 mcd
Viewing Angle : 145 deg


Description

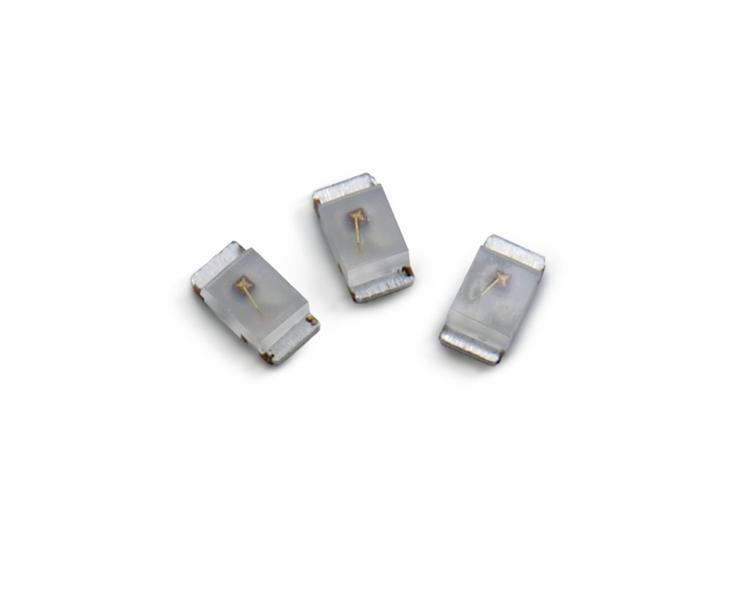

Avago's ultra-thin ASMT-Rx45 ChipLEDs were developed based on the industrial standard ChipLED 0603 platform which requires less board space. These ChipLEDs provide a wide viewing angle of 130 degrees to improve visibility in bright sunlight.

In addition to the high-brightness and compact size, Avago's ASMT-Rx45 ChipLEDs provide two significant advantages in the production environment: They can be easily soldered using IR solder reflow process, and the package of ASMT-RR45-AQ902 is qualified to a Joint Electronic Device Engineering Council (JEDEC) moisture sensitive level (MSL) rating of 2a.  For manufacturers, this rating means that these ChipLEDs can be kept in the open air (30 degrees C, 60 percent relative humidity) for up to four weeks after being removed from ASMT-RR45-AQ902 sealed package without the need to remove absorbed moisture.

Avago's ultra-thin Leadframe ChipLED available in Red, Yellow Green and Amber colors, the ASMT-Rx45 series is ideal for use by lighting designers developing backlighting for dashboards and entertainment consoles in automobiles, backlighting of industrial switches and buttons, and small pixel indoor signs.


Parameters:

Technical/Catalog Information	ASMT-RR45-AQ902
Vendor	Avago Technologies US Inc.
Category	Optoelectronics
Color	Red
Lens Style/Size	Rectangle with Flat Top
Millicandela Rating	120mcd
Voltage - Forward (Vf) Typ	2.4V
Wavelength - Dominant	636nm
Wavelength - Peak	636nm
Current - Test	20mA
Viewing Angle	145&deg
Lens Type	Diffused, White
Luminous Flux	520 mlm
Package / Case	0603 (1608 metric)
Mounting Type	Surface Mount
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ASMT RR45 AQ902 ASMTRR45AQ902 516 2005 2 ND 51620052ND 516-2005-2
