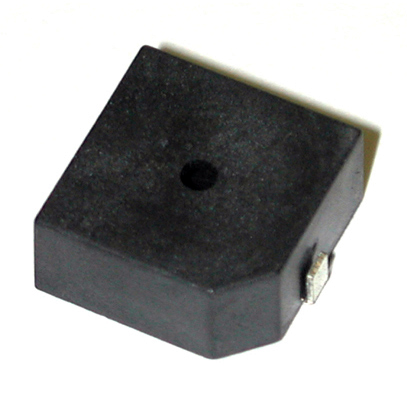

See larger image

SeekIC No. : 002844850 Detail

AST1628MA1Q: BUZZER PIEZO 4.0KHZ 1-25V SMT

AST1628MA1Q Data Sheet

US $ 1.21~1.21 / Piece | Get Latest Price

Part Number:: AST1628MA1Q
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~100

Unit Price
$1.21

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

AST100 evaluate
US $.56 - .77 / Piece

Speakers & Transducers 17.5mm RND. 5V
AST100Q evaluate
US $.76 - 1.01 / Piece

Speakers & Transducers XDUCR, PIEZO, TUBE 4KHZ, 80DB, 18X5MM
AST100TRQ evaluate
US $1.33 - 2.32 / Piece

Speakers & Transducers XDUCR, PIEZO, SMT 4KHZ, REEL, 18X5MM

Product Details

Quick Details

Series:	Sonalert®	Manufacturer:	Mallory Sonalert Products Inc
Driver Circuitry:	Transducer, Externally Driven	Technology:	Piezo
Input Type:	peak-peak Signal	Voltage - Rated:	3Vp-p
Voltage Range:	1 ~ 25V	Frequency:	4kHz
Operating Mode:	-	Sound Pressure Level:	-
Dimensions :	6.5 mm x 9 mm x 1.8 mm	Current - Supply:	5mA
Washable:	No	Mounting Type:	Surface Mount
Termination:	Solder Pads	Size / Dimension:	Square - 16.00mm L x 16.00mm W x 2.60mm H

Description

Driver Circuitry: Transducer, Externally Driven
Technology: Piezo
Frequency: 4kHz
Washable: No
Packaging: Bulk
Input Type: peak-peak Signal
Voltage - Rated: 3Vp-p
Mounting Type: Surface Mount
Termination: Solder Pads
Current - Supply: 5mA
Voltage Range: 1 ~ 25V
Sound Pressure Level: -
Series: Sonalert®
Manufacturer: Mallory Sonalert Products Inc
Size / Dimension: Square - 16.00mm L x 16.00mm W x 2.60mm H
Operating Mode: -

Parameters:

Technical/Catalog Information	AST1628MA1Q
Vendor	Mallory Sonalert Products Inc
Category	Audio Products
Type	Piezo Transducer, External Drive
Sound Pressure Level	75dB
Mounting Type	Surface Mount
Capacitance @ Frequency	16000pF @ 120Hz
Frequency	4kHz
Packaging	Bulk
Operating Mode	-
Voltage Range	1~25Vp-p
Voltage - Rated	3Vp-p
Current Rating	5mA
Size / Dimension	Square - 16mm L x 16mm W x 2.6mm H
Termination	Solder Pads
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AST1628MA1Q AST1628MA1Q
