Part Number: AT-109



MFG: MACOM

Package Cooled: SOP8



Description: M/A-COM's AT-109 is a GaAs MMIC voltage variable absorptive attenuator in a low-cost SOIC 8-lead surface mount p...


Urgent Purchase

AT-109 General Description


  M/A-COM's AT-109 is a GaAs MMIC voltage variable absorptive attenuator in a low-cost SOIC 8-lead surface mount plastic package. The AT-109 is more linear than the higher attenuation range AT-108. The AT-109 is ideally
suited for use where linear attenuation fine tuning and very low power comsumption are re quired. Typical applications include radio, cellular, GPS equipment and automatic gain/level control circ u i t s .

    The AT-109 is fabricated with a monolithic GaAs MMIC using a mature 1-micron process. The process features full chip passivation for increased perf o rmance and reliability .

AT-109 Maximum Ratings

Parameter
Absolute Maximum
Maximum Input Power

Supply Voltage VCC

Control Voltage VC

Operating Temperature

Storage Temperature
+21 dBm

-1 V, +8 V

-1 V, VCC +0.5 V

-40°C to +85°C

-65°C to +150°C

AT-109 Features

Single Positive Voltage Control 0 to +5 Vo l t s
35 dB Attenuation Range at 0.9 GHz
±2 dB Linearity from BSL
Low DC Power Consumption
Temperature Range: -40°C to +85°C
Low-Cost SOIC 8 Plastic Package
Tape and Reel Packaging Available

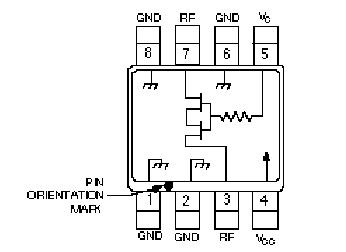

AT-109 Connection Diagram

AT-109 Connection Diagram

AT-109 datasheet

AT-109
PDF/DataSheet Download

Find AT-109 Suppliers
