Part Number: AT-110



MFG: MACOM

Package Cooled: SMD



Description: M/A-COM's AT-110 is a linear GaAs MMIC voltage variable absorptive attenuator in a low-cost SOIC 8-lead surface mount plastic...


Urgent Purchase

AT-110 General Description


   M/A-COM's AT-110 is a linear GaAs MMIC voltage variable absorptive attenuator in a low-cost SOIC 8-lead surface mount plastic package. The AT-110 has a faster switching speed than the AT-108 or AT- 109 . The AT-110 is ideally suited for use where linear attenuation fine tuning and very low power comsumption are required. Typical applications include radio , cellular, GPS equipment and automatic gain/level control circuits .

    The AT-110 is fabricated with a monolithic GaAs MMIC using a mature 1-micron process. The process features full chip passivation for increased perf o rmance and reliability .


AT-110 Maximum Ratings

Parameter
Absolute Maximum
Maximum Input Power

Supply Voltage VCC

Control Voltage VC

Operating Temperature

Storage Temperature
+21 dBm

-1 V, +8 V

-1 V, VCC +0.5 V

-40°C to +85°C

-65°C to +150°C

AT-110 Features

Single Positive Voltage Control 0 to +5 Vo l t s
30 dB Voltage Variable Attenuation
±2 dB Linearity from BSL
Low DC Power Consumption
Temperature Range: -40°C to +85°C
Low-Cost SOIC 8 Plastic Package
Tape and Reel Packaging Available
Fast Switching Speed

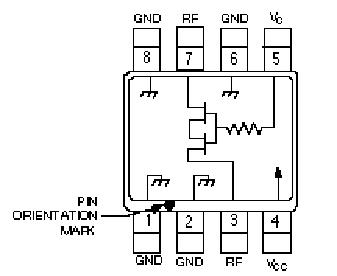

AT-110 Connection Diagram

AT-110 Connection Diagram
