Part Number: AT-220



MFG: M/ACOM

Package Cooled: SOP



Description: M/A-COM's AT-220 is a 4-bit, 2-dB step GaAs MMIC digital attenuator in a low cost SOIC 16-lead surface mount plastic pa...


Urgent Purchase

AT-220 General Description


M/A-COM's AT-220 is a 4-bit, 2-dB step GaAs MMIC digital attenuator in a low cost SOIC 16-lead surface mount plastic package. The AT-220 is ideally suited for use where high accuracy, fast switching, very low power con-sumption and low intermodulation products are required. Typical applications include radio and cellular equipment, wireless LANs, GPS equipment and other Gain/Level Control circuits.

The AT-220 is fabricated with a monolithic GaAs MMIC using a mature 1-micron process. The process features full chip passivation for increased performance and reliability.

AT-220 Maximum Ratings

Parameter
Absolute Maximum

Max. Input Power
50 MHz
500-2000 MHz
Control Voltage
Operating Temperature
Storage Temperature


+27 dBm
+34 dBm
+5V, -8.5V
-40°C to +85°C
-65°C to +150°C


AT-220 Features

Attenuation 2-dB Steps to 30 dB
High Accuracy +/-3%
Temperature Stability +/-0.15 dB from -40°C to +85°C
Low Intermodulation Product: +50 dBm IP3
Low DC Power Consumption: 50 mW
Low Cost SOIC 16 Plastic Package
Tape and Reel Packaging Available1

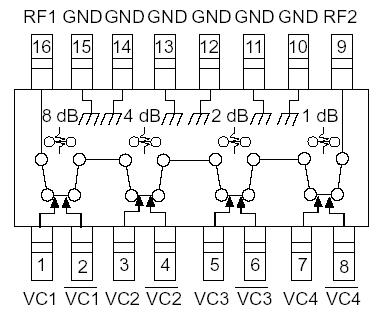

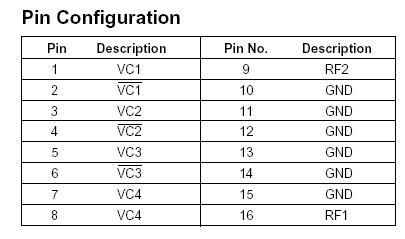

AT-220 Connection Diagram

AT-220 Connection DiagramAT-220 Connection Diagram

AT-220 datasheet

AT-220
PDF/DataSheet Download

Find AT-220 Suppliers
