AT-260

Features:

Attenuation: 1-dB Steps to 31 dB
Temperature Stability: ± 0.15 dB from -40°C to +85°C Typical
Ultra Low DC Power Consumption
Low Intermodulation Products: IP₃ = 50 dBm
Low Cost SSOP 20 Plastic Package
Tape and Reel Packaging Available

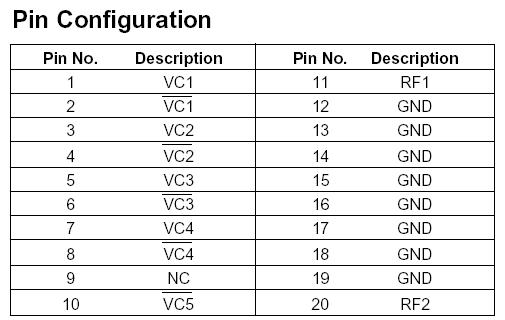

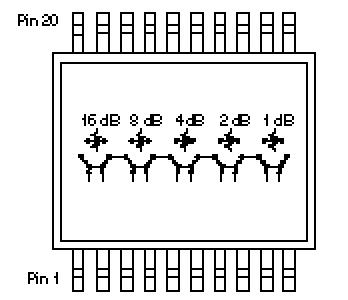

Pinout




Specifications

Parameter	Absolute Maximum
Max. Input Power   0.05 GHz   0.5 2.0 GHz Control Voltage Operating Temperature Storage Temperature	+27 dBm +34 dBm +5V, 8.5V 40°C to +85°C 65°C to +150°C

Description

    M/A-COM's AT-260 is a 5-bit, 1-dB step GaAs MMIC digital attenuator in a low cost SSOP-20 surface mount plastic package. The AT-260 is ideally suited for use where high accuracy, fast switching, very low power consumption and low intermodulation products are re q u i red at a low cost. Typical applications include radio and cellular equip-ment, wireless LANS, GPS equipment and other Gain/Level Controlcircuits .

    The AT-260 is fabricated with a monolithic GaAs MMIC using a mature 1-micron process. The process features full chip passivation for increased performance and reliability .
