AT10-0019 General Description


    M/A-COM's AT10-0019 is a Voltage Controlled PIN diode based p attenuator packaged in a low cost, 16 lead wide body plastic SMT package. The PIN diode design makes this part well suited for applications where low distortion or high linear operating power levels are required.These attenuators are ideal for gain control in multi-channel digital communications systems.

AT10-0019 Maximum Ratings

Parameter
Absolute Maximum
Max Input Power
50 - 500 MHz
500 - 1000 MHz

+24 dBm
+30 dBm
Voltages
VCC
Control Voltage

-1 V to +7.0 V
-1 V to +15 V
Operating Temperature
-40°C to +85°C
Storage Temperature
-65°C to +125°C

AT10-0019 Features

High Dynamic Range: 42dB Typical
Flat Attenuation vs. Frequency
High P1dB Compression
Operates on a Single +5V Supply:
SOW-16, Wide Body Package
50 Ohm Nominal Impedance

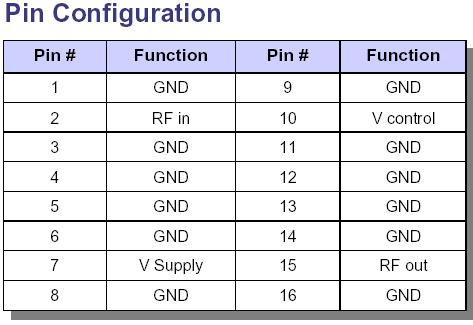

AT10-0019 Connection Diagram

AT10-0019 Connection DiagramAT10-0019 Connection Diagram
