Part Number: AT1395
Description: The AT1395 is a 5-channel PWM DC/DC control IC for low voltage applications with a soft start function and short circui...
- Table of contents:
AT1395
-
Suppliers
DataSheet
General Description
AT1395 General Description
The AT1395 is a 5-channel PWM DC/DC control IC for low voltage applications with a soft start function and short circuit detection function. This IC is ideal for up conversion, down conversion, inverting conversion (CH4 only) and up/down conversion (using a step-up/step-down SEPIC or Zeta system with free input and output settings). 5
channels can be built in the LQFP48 package, each channel be controlled, and soft-start.
The AT1395 include one comparator to generate low-battery warning outputs. It also contains two high efficiency topology by using synchronous rectification PWM (It can be disable by floating OUT1_2,OUT2_2.)
AT1395 Maximum Ratings
|
Parameter |
Symbol |
Condition |
Rating |
Unit | |
|
Min |
Max | ||||
| Power supply voltage |
Vcc |
-- |
-- |
7 |
V |
| Output current |
Io |
Output pin |
-- |
20 |
mA |
| Output peak current |
Io |
Output pin, Duty5% |
-- |
200 |
mA |
| Power dissipation |
PD |
Ta25 (LQFP-48P) |
-- |
860 |
mW |
| Operation temperature |
Topr |
-- |
-30 |
85 |
|
| Storage temperature |
Tstg |
-- |
-55 |
125 |
|
AT1395 Features
• Low start-up power supply voltage :1.4V(CH5)
• Wide supply voltage range from 2.5V to 7V (CH1~5)
• High speed operation is possible: Maximum 1 MHz
• Supports for up,down, flyback and up/down SEPIC conversion
• Supports for inverting conversion (CH4)
• Synchronized rectification on CH1,CH2
• Selectable P-Ch/N-CH MOSFETdriver
• Built-in On/Off function
• Built-in Short-Circuit Protection.
• Wide supply voltage range from 2.5V to 7V (CH1~5)
• High speed operation is possible: Maximum 1 MHz
• Supports for up,down, flyback and up/down SEPIC conversion
• Supports for inverting conversion (CH4)
• Synchronized rectification on CH1,CH2
• Selectable P-Ch/N-CH MOSFETdriver
• Built-in On/Off function
• Built-in Short-Circuit Protection.
AT1395 Typical Application
• Digital Cameras
• CCD Imaging Devices
• Camcorders
• CCD Imaging Devices
• Camcorders

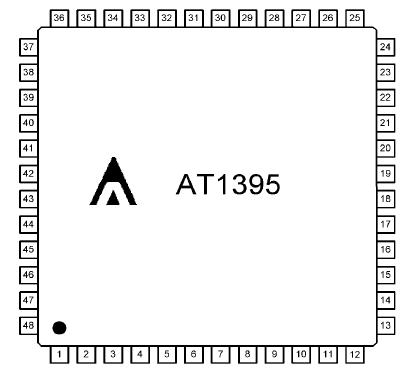

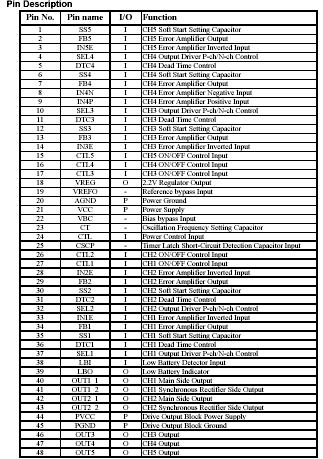

AT1395 Connection Diagram
AT1395
PDF/DataSheet Download
- Datasheet: AT1395
- File Size: 337351 KB
- Manufacturer: ETC [ETC]
- Click here to Download
