Part Number: AT1396D
Description: The AT1396A/B/C/D provide a complete power supply solution for digital cameras. They improve perform...
- Table of contents:
AT1396D
-
Suppliers
DataSheet
General Description
AT1396D General Description
The AT1396A/B/C/D provide a complete power supply solution for digital cameras. They improve performance, component count, and size compared to other multi-channel controllers in 2-cell AA, 1-cell Li-Ion, and dual-battery designs. On-chip MOSFETs provide up to 92~95% efficiency for critical power supplies,while additional channels operate with external FETs for optimum design flexibility. All channels DC/DC operate at one fixed frequency settable from 100KHz to 1MHz to optimize size, cost, and efficiency.
AT1396D Maximum Ratings
|
Item |
Symbol |
Ratings |
Units |
|
Storage temperature |
TSTG |
-55~ 150 |
|
|
Operating temperature |
TOPR |
-30~ 85 |
|
|
PVCC1,PVCC2,PVCC3,PVCC 4 input voltage |
-0.3~ 5.5 |
V | |
|
LXU,LXD, OUT3M,OUT3S input voltage |
VLX/OUT |
-0.3V~+5.5 |
V |
|
Other input Pin |
-0.3V~+5.5 |
V | |
|
LXU Current |
3.6 |
A | |
|
LXD Current |
2.25 |
A | |
|
OUT3M,OUT3S Current |
200 |
mA | |
|
Power consumption |
Pd |
1000 |
mW |
|
ESD Classification |
2 |
KV |
AT1396D Features
• 95% Efficient possible DC/DC Converter
• Combine Step-Up and Step-Down for 90% Efficient Boost-Buck
• Bulit-in LED Driver and Open LED Overvoltage Protection
• Transformerless Inverting Controller for CCD Bias
• 2 Channel Built-in MOSFET Current- Mode PWM and 4 Channel Extra PWM Controllers (CH-3 Synchronous Output)
• Up to 1MHz Operating Frequency
• Shutdown Current <1uA
• Built-in Soft-Start Function
• Built-in Short-Circuit Protection Function
• QFN48 Package
• Combine Step-Up and Step-Down for 90% Efficient Boost-Buck
• Bulit-in LED Driver and Open LED Overvoltage Protection
• Transformerless Inverting Controller for CCD Bias
• 2 Channel Built-in MOSFET Current- Mode PWM and 4 Channel Extra PWM Controllers (CH-3 Synchronous Output)
• Up to 1MHz Operating Frequency
• Shutdown Current <1uA
• Built-in Soft-Start Function
• Built-in Short-Circuit Protection Function
• QFN48 Package

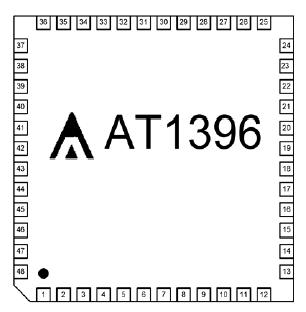

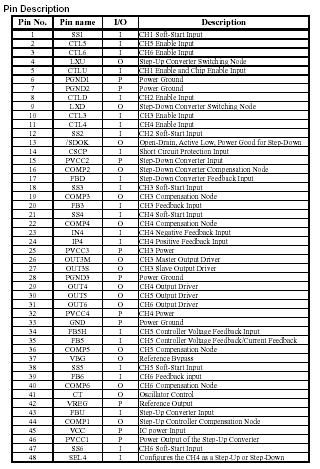

AT1396D Connection Diagram
AT1396D
PDF/DataSheet Download
- Datasheet: AT1396D
- File Size: 820005 KB
- Manufacturer: ETC [ETC]
- Click here to Download
