General Description
AT1741 General Description
The AT1741 is 2-channel PWM switching regulator controllers that contains an on-chip 2.5V reference, two error amplifier, an adjustable oscillator, two dead-time comparators, undervoltage lockout circuitry and 2 commonemitter output. It is idea for step-up, step-down, and inverting converter.
AT1741 Maximum Ratings
|
Parameter |
Symbol |
Limits |
Unit |
| Power supply voltage |
Vcc |
28 |
V |
| Power dissipation |
Pd |
500*1 |
mW |
| Operating temperture |
Topr |
-30~+85 |
|
| Storage temperture |
Tstg |
-55~+125 |
|
| Output current |
Io |
120*2 |
mA |
| Output voltage |
Vo |
30 |
V |
AT1741 Features
• High-accuracy reference voltage circuit (±2%).
• Built-in short-circuit protection circuit.
• Built-in Undervoltage Lockout protection.
• Internal 2.5V Reference supply.
• Variable Dead time provides control over total Range.
• Built-in short-circuit protection circuit.
• Built-in Undervoltage Lockout protection.
• Internal 2.5V Reference supply.
• Variable Dead time provides control over total Range.
AT1741 Typical Application
• LCD CCFL Backlight
• Portable equipment
• Portable equipment

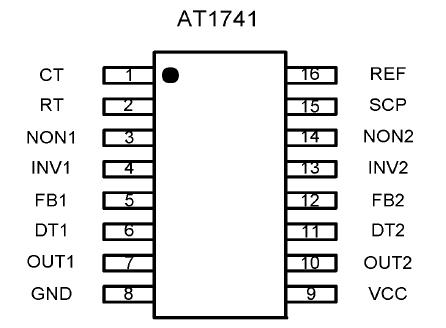

AT1741 Connection Diagram
AT1741
