Purchase AT24C11, In-stock AT24C11 From SeekIC.
Part Number: AT24C11
Description: The AT24C11 provides 1024 bits of serial electrically erasable and programmable read only memory (EEPR...
- Table of contents:
AT24C11
-
Suppliers
DataSheet
General Description
AT24C11 General Description
The AT24C11 provides 1024 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 128 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C11 is available in space saving 8-lead PDIP, 8-lead JEDEC SOIC, 5-lead SOT23 and 8-lead TSSOP packages and is accessed via a 2-wire serial interface. In addition, the entire family is available in 2.7V (2.7V to 5.5V) and 1.8V (1.8V to 5.5V) versions.
AT24C11 Maximum Ratings
Operating Temperature................................... -55 to +125
Storage Temperature ..................................... -65 to +150
Voltage on Any Pin
with Respect to Ground .....................................-1.0V to +7.0V
Maximum Operating Voltage .......................................... 6.25V
DC Output Current........................................................ 5.0 mA
Storage Temperature ..................................... -65 to +150
Voltage on Any Pin
with Respect to Ground .....................................-1.0V to +7.0V
Maximum Operating Voltage .......................................... 6.25V
DC Output Current........................................................ 5.0 mA
AT24C11 Features
• Low Voltage and Standard Voltage Operation
2.7 (VCC = 2.7V to 5.5V)
1.8 (VCC = 1.8V to 5.5V)
• Internally Organized 128 x 8
• 2-Wire Serial Interface
• Bidirectional Data Transfer Protocol
• 100 kHz (1.8V) and 400 kHz (2.5V, 2.7V, 5V) Compatibility
• 4-Byte Page Write Mode
• Self-Timed Write Cycle (5 ms max)
• High Reliability
Endurance: 1 Million Write Cycles
Data Retention: 100 Years
• Automotive Grade, Extended Temperature and Lead-Free/Halogen-Free
Devices Available
• 8-lead PDIP, 8-lead JEDEC SOIC, 5-lead SOT23 and 8-lead TSSOP Packages
2.7 (VCC = 2.7V to 5.5V)
1.8 (VCC = 1.8V to 5.5V)
• Internally Organized 128 x 8
• 2-Wire Serial Interface
• Bidirectional Data Transfer Protocol
• 100 kHz (1.8V) and 400 kHz (2.5V, 2.7V, 5V) Compatibility
• 4-Byte Page Write Mode
• Self-Timed Write Cycle (5 ms max)
• High Reliability
Endurance: 1 Million Write Cycles
Data Retention: 100 Years
• Automotive Grade, Extended Temperature and Lead-Free/Halogen-Free
Devices Available
• 8-lead PDIP, 8-lead JEDEC SOIC, 5-lead SOT23 and 8-lead TSSOP Packages
AT24C11 Connection Diagram
AT24C11
PDF/DataSheet Download
- Datasheet: AT24C11
- File Size: 593771 KB
- Manufacturer: ATMEL
- Click here to Download
- ·AT2
- Analog IC
- 55024 KB
- ·AT20
- Analog IC
- 55024 KB
- ·AT200
- Analog IC
- 318833 KB
- ·AT20-0106
- MACOM [Tyco Electronics]
- Digital Attenuator, 50 dB, 6-Bit, TTL Driver, DC - 2 GHz
- 241322 KB
- ·AT20-0106PIN
- MACOM [Tyco Electronics]
- Digital Attenuator, 50 dB, 6-Bit, TTL Driver, DC - 2 GHz
- 241322 KB
- ·AT20-0107
- MACOM [Tyco Electronics]
- Digital Attenuator, 31.5 dB, 6-Bit, TTL Driver, DC - 2.0 GHz
- 312692 KB
- ·AT20-0107-TB
- MACOM [Tyco Electronics]
- Digital Attenuator, 31.5 dB, 6-Bit, TTL Driver, DC - 2.0 GHz
- 312692 KB
- ·AT20-0107TR
- MACOM [Tyco Electronics]
- Digital Attenuator, 31.5 dB, 6-Bit, TTL Driver, DC - 2.0 GHz
- 312692 KB
AT24C11 Relative Products
AT24C1024Y4-10YU-2.7
IC SEEPROM 1M 2.7V 8-SAP
AT24C1024W-10SU-2.7
IC SRL EEPROM 1M 2.7V 8SOIC
-
AT24C1024W-10SI-2.7
IC SEEPROM 1M 2.7V 8SOIC
.jpg)

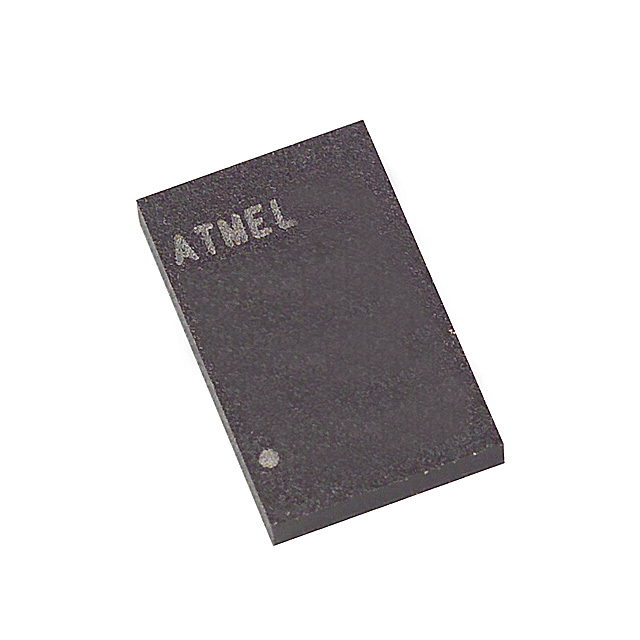

AT24C1024C1-10CI-2.7
