Purchase AT24C128, In-stock AT24C128 From SeekIC.
MFG:AT D/C:02+
Part Number: AT24C128
MFG: AT
D/C: 02+
Description: The AT24C128/256 provides 131,072/262,144 bits of serial electrically erasable and programmable read o...
- Table of contents:
AT24C128
-
Suppliers
DataSheet
General Description
AT24C128 General Description
The AT24C128/256 provides 131,072/262,144 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 16,384/32,768 words of 8 bits each. The device's cascadable feature allows up to 4 devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applica- tions where low power and low voltage operation are essential. The devices are avail- able in space-saving 8-pin JEDEC PDIP, 8-pin EIAJ, 8-pin JEDEC SOIC, 14-pin TSSOP, and 8-pin LAP packages. In addition, the entire family is available in 5.0V (4.5V to 5.5V), 2.7V (2.7V to 5.5V) and 1.8V (1.8V to 3.6V) versions.
AT24C128 Maximum Ratings
Operating Temperature..............................-55°C to +125°C
Storage Temperature.................................-65°C to +150°C
Voltage on Any Pin
with Respect to Ground.....................................-1.0V to +7.0V
Maximum Operating Voltage...........................................6.25V
DC Output Current........................................................5.0 mA
Storage Temperature.................................-65°C to +150°C
Voltage on Any Pin
with Respect to Ground.....................................-1.0V to +7.0V
Maximum Operating Voltage...........................................6.25V
DC Output Current........................................................5.0 mA
AT24C128 Features
. Low Voltage and Standard Voltage Operation
5.0 (V = 4.5V to 5.5V)CC
2.7 (V = 2.7V to 5.5V)CC
1.8 (V = 1.8V to 3.6V)CC
. Internally Organized 16,384 x 8 and 32,768 x 8
. 2-Wire Serial Interface
. Schmitt Trigger, Filtered Inputs for Noise Suppression
. Bidirectional Data Transfer Protocol
. 1 MHz (5V), 400 kHz (2.7V) and 100 kHz (1.8V) Compatibility
. Write Protect Pin for Hardware and Software Data Protection
. 64-Byte Page Write Mode (Partial Page Writes Allowed)
. Self-Timed Write Cycle (5 ms typical)
. High Reliability
- Endurance: 100,000 Write Cycles
Data Retention: 40 Years
ESD Protection: > 4000V
. Automotive Grade and Extended Temperature Devices Available
. 8-Pin JEDEC PDIP, 8-Pin JEDEC and EIAJ SOIC, 14-Pin TSSOP, and
8-Pin Leadless Array Packages
5.0 (V = 4.5V to 5.5V)CC
2.7 (V = 2.7V to 5.5V)CC
1.8 (V = 1.8V to 3.6V)CC
. Internally Organized 16,384 x 8 and 32,768 x 8
. 2-Wire Serial Interface
. Schmitt Trigger, Filtered Inputs for Noise Suppression
. Bidirectional Data Transfer Protocol
. 1 MHz (5V), 400 kHz (2.7V) and 100 kHz (1.8V) Compatibility
. Write Protect Pin for Hardware and Software Data Protection
. 64-Byte Page Write Mode (Partial Page Writes Allowed)
. Self-Timed Write Cycle (5 ms typical)
. High Reliability
- Endurance: 100,000 Write Cycles
Data Retention: 40 Years
ESD Protection: > 4000V
. Automotive Grade and Extended Temperature Devices Available
. 8-Pin JEDEC PDIP, 8-Pin JEDEC and EIAJ SOIC, 14-Pin TSSOP, and
8-Pin Leadless Array Packages

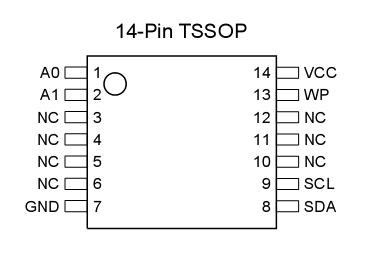

AT24C128 Connection Diagram
