AT24C16A General Description


The AT24C02A/04A/08A/16A provides 2048/4096/8192/16384 bits of serial electri- cally erasable and programmable read-only memory (EEPROM) organized as 256/512/1024/2048 words of 8 bits each. The device is optimized for use in many automotive applications where low-power and low-voltage operation are essential.

SOIC, and 8-lead TSSOP packages and is accessed via a two-wire serial interface. In addition, the entire family is available in 2.7V (2.7V to 5.5V) version.

AT24C16A Maximum Ratings

Operating Temperature................................-40°C to +125°C
Storage Temperature...................................-65°C to +150°C
Voltage on Any Pin
with Respect to Ground .....................................-1.0V to +7.0V
Maximum Operating Voltage .......................................... 6.25V
DC Output Current........................................................ 5.0 mA

AT24C16A Features

* Write Protect Pin for Hardware Data Protection
   Utilizes Different Array Protection Compared to the AT24C02/04/08/16
* Medium-voltage and Standard-voltage Operation
   5.0 (VCC  = 4.5V to 5.5V)
   2.7 (VCC  = 2.7V to 5.5V)
* Internally Organized 256 x 8 (2K), 512 x 8 (4K), 1024 x 8 (8K) or 2048 x 8 (16K)
* Two-wire Serial Interface
* Schmitt Trigger, Filtered Inputs for Noise Suppression
* Bidirectional Data Transfer Protocol
* 400 kHz (2.7V, 5V) Clock Rate
* 8-byte Page (2K), 16-byte Page (4K, 8K, 16K) Write Modes
* Partial Page Writes Allowed
* Self-timed Write Cycle (5 ms Max)
* High Reliability
   Endurance: One Million Write Cycles
   Data Retention: 100 Years
* Automotive Grade, Extended Temperature, and Lead-Free/Halogen-Free
   Devices Available
* 8-lead PDIP, 8-lead JEDEC SOIC, and 8-lead TSSOP Packages

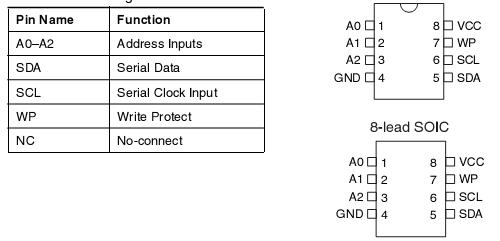

AT24C16A Connection Diagram

AT24C16A Connection Diagram

AT24C16A datasheet
