AT27BV040-12JC

Series: -
Packaging: Tube
Operating Temperature: 0°C ~ 70°C
Memory Size: 4M (512K x 8)
Interface: Parallel
Package / Case: 32-LCC (J-Lead)
Supplier Device Package: 32-PLCC
Manufacturer: Atmel
Format - Memory: EPROMs
Memory Type: EPROM OTP
Speed: 120ns
Voltage - Supply: 2.7 V ~ 3.6 V, 4.5 V ~ 5.5 V


Features:

• Fast Read Access Time - 120 ns
• Dual Voltage Range Operation
    Unregulated Battery Power Supply Range, 2.7V to 3.6V
    or Standard 5V ± 10% Supply Range
• Compatible with JEDEC Standard AT27C040
• Low Power CMOS Operation
    20  µA max. (less than 1 µA typical) Standby for V_CC = 3.6V
    29 mW max. Active at 5 MHz for V_CC =  3.6V
• JEDEC Standard Packages
    32-Lead PLCC
    32-Lead TSOP
• High Reliability CMOS Technology
    2,000V ESD Protection
    200 mA Latchup Immunity
• Rapid^TM Programming Algorithm - 100 µs/byte (typical)
• CMOS and TTL Compatible Inputs and Outputs
    JEDEC Standard for LVTTL and LVBO
• Integrated Product Identification Code
• Commercial and Industrial Temperature Ranges

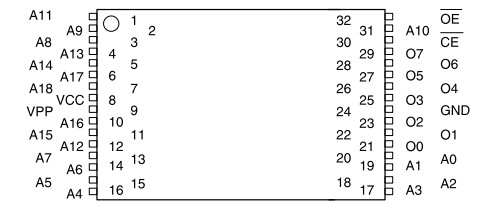

Pinout




Specifications

Temperature Under Bias .................. -40°C to +85°C
Storage Temperature...................... -65°C to +125°C
Voltage on Any Pin with
Respect to Ground.............................. -2.0V to +7.0V
Voltage on A9 with
Respect to Ground ........................... -2.0V to +14.0V
V_PP Supply Voltage with
Respect to Ground............................ -2.0V to +14.0V


Description

The AT27BV040 chip is a high performance, low power, low voltage, 4,194,304 bit one-time programmable read only memory (EPROM) organized as 512K by 8 bits.  AT27BV040-12JC requires only one supply in the range of 2.7 to 3.6V in normal read mode operation, making it ideal for fast, portable systems using either regulated or unregulated battery power.

Atmel's innovative design techniques provide fast speeds that rival 5V parts while keeping the low power consumption of a 3V supply. At V_CC = 2.7V, any byte can be accessed in less than 100 ns. With a typical power dissipation of only 18 mW at 5 MHz and V_CC = 3V, the AT27BV040 consumes less than one fifth the power of a standard 5V EPROM. Standby mode supply current is typically less than 1 µA at 3V. The AT27BV040 simplifies system design and stretches battery lifetime even further by eliminating the need for power supply regulation.

The AT27BV040 is available in industry standard JEDEC-approved one-time programmable (OTP) plastic PLCC and TSOP packages. All devices feature two-line control (CE, OE) to give designers the flexibility to prevent bus contention.

The AT27BV040 operating with VCC at 3.0V produces TTL level outputs that are compatible with standard TTL logic devices operating at V_CC = 5.0V. At V_CC = 2.7V, the part is compatible with JEDEC approved low voltage battery operation (LVBO) interface specifications. The device is also capable of standard 5-volt operation making it ideally suited for dual supply range systems or card products that are pluggable in both 3-volt and 5-volt hosts.

Atmel's AT27BV040 has additional features to ensure high quality and efficient production use. The Rapid^TM Programming Algorithm reduces the time required to program the part and guarantees reliable programming. Programming time is typically only 100 µs/byte. The Integrated Product Identification Code electronically identifies the device and manufacturer. This feature of AT27BV040-12JC is used by industry standard programming equipment to select the proper programming algorithms and voltages. The AT27BV040 programs exactly the same way as a standard 5V AT27C040 and uses the same programming equipment.

Parameters:

Technical/Catalog Information	AT27BV040-12JC
Vendor	Atmel
Category	Integrated Circuits (ICs)
Memory Type	OTP EPROM
Memory Size	4M (512K x 8)
Speed	120ns
Interface	Parallel
Package / Case	32-PLCC
Packaging	Tube
Voltage - Supply	2.7 V ~ 3.6 V, 4.5 V ~ 5.5 V
Operating Temperature	0°C ~ 70°C
Format - Memory	EPROMs
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	AT27BV040 12JC AT27BV04012JC
