AT49F2048A General Description
AT49F2048A Maximum Ratings
Temperature under Bias ................................ -55°C to +125°C
Storage Temperature..................................... -65°C to +150°C
All Input Voltages
(including NC Pins)
with Respect to Ground ...................................-0.6V to +6.25V
All Output Voltages
with Respect to Ground .............................-0.6V to VCC + 0.6V
Voltage on OE
with Respect to Ground ...................................-0.6V to +13.5V
AT49F2048A Features
• Single-voltage Operation
5V Read
5V Reprogramming
• Fast Read Access Time 70 ns
• Internal Erase/Program Control
• Sector Architecture
One 8K Word (16K Bytes) Boot Block with Programming Lockout
Two 4K Word (8K Bytes) Parameter Blocks
One 112K Word (224K bytes) Main Memory Array Block
• Fast Sector Erase Time 10 seconds
• Byte-by-byte or Word-by-word Programming 50 µs
• Hardware Data Protection
• Data Polling for End of Program Detection
• Low Power Dissipation
50 mA Active Current
100 µA CMOS Standby Current
• Typical 10,000 Write Cycles

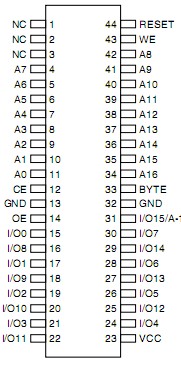

AT49F2048A Connection Diagram
