Purchase AT5659, In-stock AT5659 From SeekIC.
Part Number: AT5659
Description: The AT5659 is a monolithic integrated circuit, and suitable for 5-ch motor driver which drives fo...
- Table of contents:
AT5659
-
Suppliers
DataSheet
General Description
AT5659 General Description
The AT5659 is a monolithic integrated circuit, and suitable for 5-ch motor driver which drives focus actuator, tracking actuator, sled motor, spindle motor and Tray motor of CDP & VCD system.
AT5659 Features
• 1 CH(Forward-reverse) control DC motor driver
• 4 CH BTL(Balanced Transformerless) driver
• Built-in Thermal shutdown circuit
• Built-in 5V regulator (with an external PNP TR)
• Built-in mute circuit
• Built-in Tray motor speed control circuit
• Wide operating supply voltage range: 6V~13.2V
• 4 CH BTL(Balanced Transformerless) driver
• Built-in Thermal shutdown circuit
• Built-in 5V regulator (with an external PNP TR)
• Built-in mute circuit
• Built-in Tray motor speed control circuit
• Wide operating supply voltage range: 6V~13.2V
AT5659 Typical Application
• CD-PLAYER
• VIDEO-CD
• CAR-CD
• VIDEO-CD
• CAR-CD

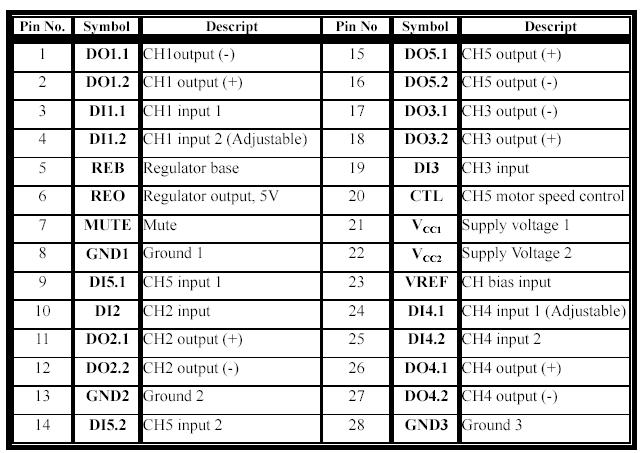

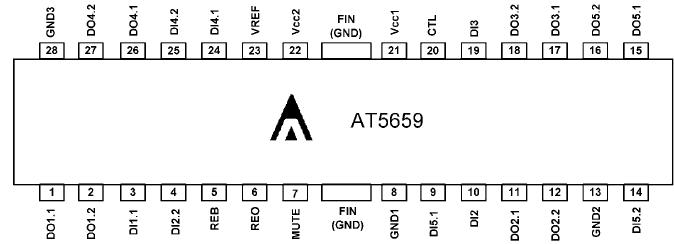

AT5659 Connection Diagram
AT5659
PDF/DataSheet Download
- Datasheet: AT5659
- File Size: 303714 KB
- Manufacturer: ETC [ETC]
- Click here to Download
