Description



Features:

• 5 Smart Card Interfaces
Compliance with ISO 7816, EMV2000, GIE-CB and GSM Standards
Direct Connection to the Smart Cards
Logic Level Shifters
Short Circuit Current Limitation
4kV+ ESD Protection (MIL/STD 883 Class 3)
1 or 2 Master Smart Card interfaces
Synchronous Card support (with C4 and C8 Contacts)
Card Detection and Automatic de-activation sequence on card extraction
1 to 4 SAM/SIM cards (15 to 30mA each)
Programmable Voltage for each smart card
Class A: 5V ±0.4V at 60 mA (±0.25V at 65 mA with VCC= 5V±10%)
Class B: 3V ±0.2V at 60 mA
Class C: 1.8V ±0.14V at 40mA
Low Ripple Noise: < 200 mV
Programmable Activation Sequence
Automatic de-activation on card power-fail or over-current and system power-fail
Card Clock Stop High or Low for Card Power-down Modes
• Versatile Host Interface
Two Wire Interface (TWI) Link at 400kbit/s Programmable Address allow up to 4 AT83C26 on the bus
Programmable Interrupt Output
• Reset Output Includes
Power-On Reset (POR)
Power-Fail Detector (PFD)
• Extended Voltage Operation: 3 to 5.5V
• Low Power Consumption
5 mA Maximum Operating Current (without Smart Card)
150 mA Maximum In-rush Current (each DC/DC)
30 µA Typical Power-down Current (without Smart Card)
• 4 to 48 MHz Clock Input
• System clock derived from the external clock input
• Industrial Temperature Range: -40 to +85°C
• Packages: QFN48, VQFP48



Pinout

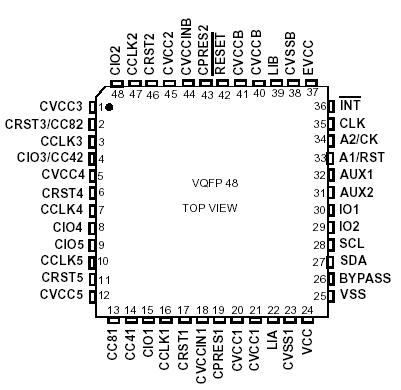

Connection Diagram


Specifications

Ambient Temperature Under Bias: ..........................-40°C to 85°C

Storage Temperature: ...................................... -65°C to +150°C

Voltage on VCC: ................................................ VSS -0.5V to +6.0V

Voltage on SCIB pins (***): ...................CVSS -0.5V to CVCC + 0.5V

Voltage on host interface pins:..................VSS -0.5V to EVCC + 0.5V

Voltage on other pins: ............................... VSS -0.5V to VCC + 0.5V

Max Power Dissipation: ........................................................ 350mW

Thermal resistor of QFN package (**)...................................24°C/W

Thermal resistor of VQFP package........................................67°C/W





Description

The AT83C26 is a smart card reader interface IC for smart card reader/writer applications such as EFT/POS terminals and set top boxes. It enables the management of any type of smart card from any kind of host. Up to 4 AT83C 26 can be connected in parallel thanks to the programmable TWI address.

AT83C26's high efficiency DC/DC converters and low quiescent current in stand-by mode make it particularly suited to low power and portable applications. The reduced bill of material allows to lower significantly the system size and cost. A sophisticated protection system guarantees timely and controlled shutdown upon error conditions.
