AT90-1233

Features: Attenuation: 2 dB Steps to 30 dBSingle Positive SupplyContains Internal DC to DC ConverterSmall Footprint, JEDEC PackageIntegral TTL Driver50 Ohm ImpedanceTest Boards AvailableTape and Reel Packaging AvailablePinoutSpecifications Parameter Absolute Maximum Max. Input Power...

product image

AT90-1233 Picture
See larger image
SeekIC No. : 004290852 Detail

AT90-1233: Features: Attenuation: 2 dB Steps to 30 dBSingle Positive SupplyContains Internal DC to DC ConverterSmall Footprint, JEDEC PackageIntegral TTL Driver50 Ohm ImpedanceTest Boards AvailableTape and Ree...

AT90-1233 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AT90-1233
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Attenuation: 2 dB Steps to 30 dB
Single Positive Supply
Contains Internal DC to DC Converter
Small Footprint, JEDEC Package
Integral TTL Driver
50 Ohm Impedance
Test Boards Available
Tape and Reel Packaging Available

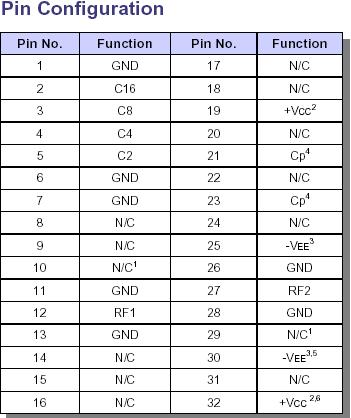

Pinout

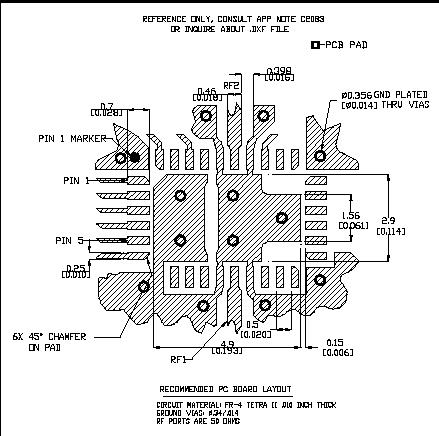

Connection Diagram Connection Diagram


Specifications

Parameter
Absolute Maximum
Max. Input Power
0.05 GHz
0.5 - 2.5 GHz

+27 dBm
+34 dBm
+Vcc
+5.5V
-Vee
-8.5V
Logic Voltages 9
-0.5 to +Vcc + 0.5V
Operating Temperature
-40°C to +85°C
Storage Temperature
-65°C to +125°C



Description

M/A-COM's AT90-1233 is a GaAs FET 4-Bit digital attenuator with integral driver. Step size is 2 dB providing a 30 dB attenuation range. This device is in an FQFP-N plastic surface mount package. The AT90- 1233 is suited for single supply applications where accuracy, fast speed, low power consumption and low costs are required.
