Part Number: AT90-1413



MFG: ESSMJ-2-12-75TR





Description: M/A-COM's AT90-1413 is a GaAs FET 4-Bit digital attenuator with integral driver. Step size is 1 dB providing a 15 dB at...


Urgent Purchase

AT90-1413 General Description


M/A-COM's AT90-1413 is a GaAs FET 4-Bit digital attenuator with integral driver. Step size is 1 dB providing a 15 dB attenuation range. This device is in an FQFP-N plastic surface mount package. The AT90-1413 is suited for single supply applications where accuracy, fast speed, low power consumption and low costs are required.

AT90-1413 Maximum Ratings

Parameter
Absolute Maximum
Max. Input Power
0.05 GHz
0.5 - 4.0 GHz

+27 dBm
+34 dBm
+Vcc
+5.5V
Logic Voltages 9
-0.5 to +Vcc + 0.5V
Operating Temperature
-40°C to +85°C
Storage Temperature
-65°C to +125°C

AT90-1413 Features

Attenuation: 1 dB Steps to 15 dB
Single Positive Supply
Contains Internal DC to DC Converter
Small Footprint, JEDEC Package
Integral TTL Driver
50 Ohm Impedance
Test Boards Available
Tape and Reel Packaging Available

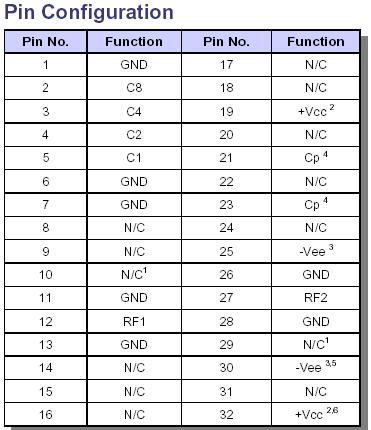

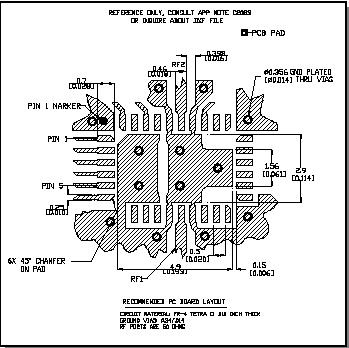

AT90-1413 Connection Diagram

AT90-1413 Connection DiagramAT90-1413 Connection Diagram
