Part Number: AT90S8515
Description: The AT90S8515 is a low-power CMOS 8-bit microcontroller based on the AVR ® enhanced RISC architecture. B...
- Table of contents:
AT90S8515
-
Suppliers
DataSheet
General Description
AT90S8515 General Description
The AT90S8515 is a low-power CMOS 8-bit microcontroller based on the AVR ® enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the AT90S8515 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.
The AT90S8515 provides the following features: 8K bytes of In-System Programmable Flash, 512 bytes EEPROM, 512 bytes SRAM, 32 general purpose I/O lines, 32 general purpose working registers, flexible timer/counters with compare modes, internal and external interrupts, a programmable serial UART, programmable Watchdog Timer with internal oscillator, an SPI serial port and two software selectable power saving modes. The Idle Mode stops the CPU while allowing the SRAM, timer/counters, SPI port and interrupt system to continue functioning. The power down mode saves the register contents but freezes the oscillator, disabling all other chip functions until the next interrupt or hardware reset.
The device is manufactured using Atmel's high density non-volatile memory technology. The on-chip in-system programmable Flash allows the program memory to be reprogrammed in-system through an SPI serial interface or by a conventional nonvolatile memory programmer. By combining an enhanced RISC 8-bit CPU with In-System Programmable Flash on a monolithic chip, the Atmel AT90S8515 is a powerful microcontroller that provides a highly flexible and cost effective solution to many embedded control applications.
The AT90S8515 AVR is supported with a full suite of program and system development tools including: C compilers, macro assemblers, program debugger/simulators, incircuit emulators, and evaluation kits.
AT90S8515 Maximum Ratings
| Operating Temperature .................................... -40°C to +105°C Storage Temperature ....................................... -65°C to +150°C Voltage on any Pin except RESET with respect to Ground ............................................-1.0V to +7.0V Maximum Operating Voltage.................................................... 6.6V I/O Pin Maximum Current ................................................... 40.0 mA Maximum Current VCC and GND........................................ 140.0 mA |
AT90S8515 Features
• AVR - High Performance and Low Power RISC Architecture
• 118 Powerful Instructions - Most Single Clock Cycle Execution
• 8K bytes of In-System Reprogrammable Flash
SPI Serial Interface for Program Downloading
Endurance: 1,000 Write/Erase Cycles
• 512 bytes EEPROM
Endurance: 100,000 Write/Erase Cycles
• 512 bytes Internal SRAM
• 32 x 8 General Purpose Working Registers
• 32 Programmable I/O Lines
• Programmable Serial UART
• SPI Serial Interface
• VCC: 2.7 - 6.0V
• Fully Static Operation
0 - 8 MHz 4.0 - 6.0V,
0 - 4 MHz 2.7 - 4.0V
• Up to 8 MIPS Throughput at 8 MHz
• One 8-Bit Timer/Counter with Separate Prescaler
• One 16-Bit Timer/Counter with Separate Prescaler and Compare and Capture Modes
• Dual PWM
• External and Internal Interrupt Sources
• Programmable Watchdog Timer with On-Chip Oscillator
• On-Chip Analog Comparator
• Low Power Idle and Power Down Modes
• Programming Lock for Software Security
• 118 Powerful Instructions - Most Single Clock Cycle Execution
• 8K bytes of In-System Reprogrammable Flash
SPI Serial Interface for Program Downloading
Endurance: 1,000 Write/Erase Cycles
• 512 bytes EEPROM
Endurance: 100,000 Write/Erase Cycles
• 512 bytes Internal SRAM
• 32 x 8 General Purpose Working Registers
• 32 Programmable I/O Lines
• Programmable Serial UART
• SPI Serial Interface
• VCC: 2.7 - 6.0V
• Fully Static Operation
0 - 8 MHz 4.0 - 6.0V,
0 - 4 MHz 2.7 - 4.0V
• Up to 8 MIPS Throughput at 8 MHz
• One 8-Bit Timer/Counter with Separate Prescaler
• One 16-Bit Timer/Counter with Separate Prescaler and Compare and Capture Modes
• Dual PWM
• External and Internal Interrupt Sources
• Programmable Watchdog Timer with On-Chip Oscillator
• On-Chip Analog Comparator
• Low Power Idle and Power Down Modes
• Programming Lock for Software Security

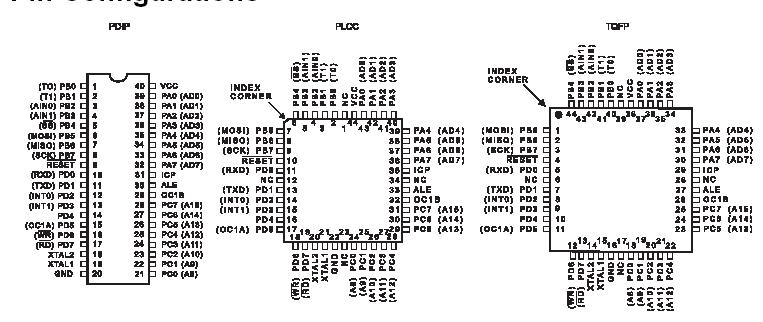

AT90S8515 Connection Diagram
