AT91EB55

Operating Supply Voltage :
Tool Type : Evaluation Board
Core : ARM7TDMI
Interface Type : JTAG
Processor To Be Evaluated : AT91M55800A


Features:

·Two serial ports
·Reset push button
·An indicator which memorizes a reset appearance
·Memory clear for the reset indicator
·Four user-defined push buttons
·Eight LEDs
·256K byte of 16-bit SRAM (upgradable to 1 MB)
·2M bytes of 16-bit Flash (of which 1 MB is available for user software)
·4M bytes of Serial Data Flash (upgradeable to 16 MB)

Description

The AT91EB55 Evaluation Board enables real-time code development and evaluation.

It supports the AT91M55800A.

This user guide focuses on the AT91 Evaluation Board as an evaluation and demonstration platform:

·Section 1 provides an overview.

·Section 2 describes how to setup the evaluation board.

·Section 3 describes the on-board software.

·Section 4 contains a description of the circuit board.

Appendixes A and B cover configuration straps and schematics including pin connectors.


Parameters:

Technical/Catalog Information	AT91EB55
Vendor	Atmel
Category	Programmers, Development Systems
Type	ARM7 Processor, Microcontroller

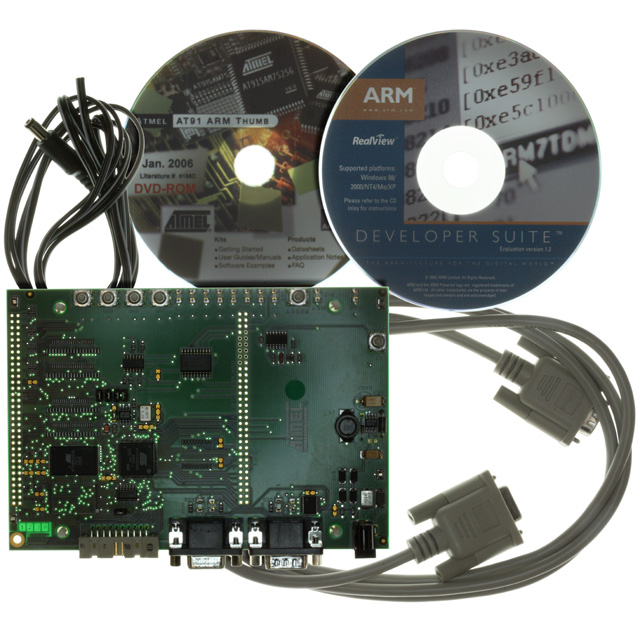

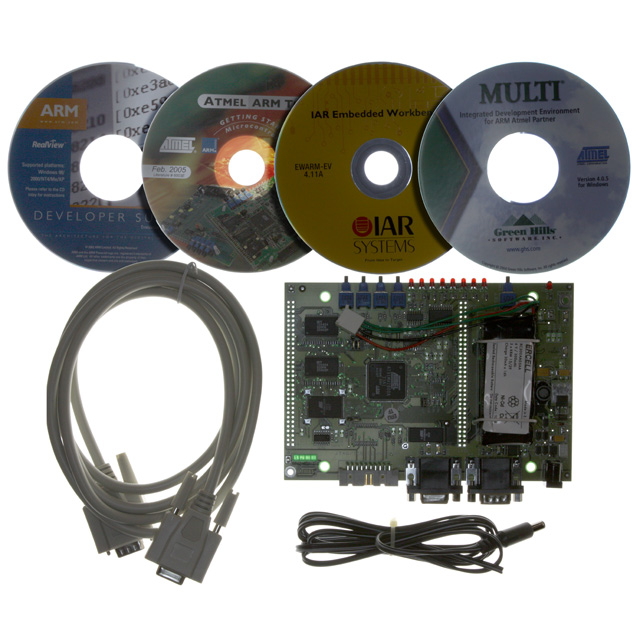

Contents	Evaluation Board, Cable, Power Jack, CD-ROM
For Use With/Related Products	AT91M55800A
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	AT91EB55 AT91EB55
