AT91SAM7SE32

• Incorporates the ARM7TDMI^® ARM^® Thumb^® Processor
   High-performance 32-bit RISC Architecture
   High-density 16-bit Instruction Set
   Leader in MIPS/Watt
   EmbeddedICE™ In-circuit Emulation, Debug Communication Channel Support
• Internal High-speed Flash
   512 Kbytes, Organized in Two Contiguous Banks of 1024 Pages of 256 Bytes Dual Plane (AT91SAM7SE512)
   256 Kbytes (AT91SAM7SE256) Organized in One Bank of 1024 Pages of 256 Bytes Single
       Plane (AT91SAM7SE256)
   32 Kbytes (AT91SAM7SE32) Organized in One Bank of 256 Pages of 128 Bytes Single Plane (AT91SAM7SE32)
   Single Cycle Access at Up to 30 MHz in Worst Case Conditions
   Prefetch Buffer Optimizing Thumb Instruction Execution at Maximum Speed
   Page Programming Time: 6 ms, Including Page Auto-erase, Full Erase Time: 15 ms
   10,000 Erase Cycles, 10-year Data Retention Capability, Sector Lock Capabilities, Flash Security Bit
   Fast Flash Programming Interface for High Volume Production
• 32 Kbytes (AT91SAM7SE512/256) or 8 Kbytes (AT91SAM7SE32) of Internal High-speed SRAM, Single-cycle Access
   at Maximum Speed
• One External Bus Interface (EBI)
   Supports SDRAM, Static Memory, Glueless Connection to CompactFlash® and ECC-enabled NAND Flash
• Memory Controller (MC)
  Embedded Flash Controller
  Memory Protection Unit
  Abort Status and Misalignment Detection
• Reset Controller (RSTC)
  Based on Power-on Reset Cells and Low-power Factory-calibrated Brownout Detector
  Provides External Reset Signal Shaping and Reset Source Status
• Clock Generator (CKGR)
   Low-power RC Oscillator, 3 to 20 MHz On-chip Oscillator and One PLL
• Power Management Controller (PMC)
  Power Optimization Capabilities, Including Slow Clock Mode (Down to 500 Hz) and Idle Mode
  Three Programmable External Clock Signals
• Advanced Interrupt Controller (AIC)
  Individually Maskable, Eight-level Priority, Vectored Interrupt Sources
  Two External Interrupt Sources and One Fast Interrupt Source, Spurious Interrupt Protected
• Debug Unit (DBGU)
  Two-wire UART and Support for Debug Communication Channel interrupt, Programmable ICE Access Prevention
• Periodic Interval Timer (PIT)
  20-bit Programmable Counter plus 12-bit Interval Counter
• Windowed Watchdog (WDT)
  12-bit key-protected Programmable Counter
  Provides Reset or Interrupt Signals to the System
  Counter May Be Stopped While the Processor is in Debug State or in Idle Mode
• Real-time Timer (RTT)
  32-bit Free-running Counter with Alarm
  Runs Off the Internal RC Oscillator
• Three Parallel Input/Output Controllers (PIO)
  Eighty-eight Programmable I/O Lines Multiplexed with up to Two Peripheral I/Os
  Input Change Interrupt Capability on Each I/O Line
  Individually Programmable Open-drain, Pull-up Resistor and Synchronous Output
  Schmitt Trigger on All inputs
• Eleven Peripheral DMA Controller (PDC) Channels
• One USB 2.0 Full Speed (12 Mbits per second) Device Port
  On-chip Transceiver, Eight Endpoints, 2688-byte Configurable Integrated FIFOs
• One Synchronous Serial Controller (SSC)
  Independent Clock and Frame Sync Signals for Each Receiver and Transmitter
  I²S Analog Interface Support, Time Division Multiplex Support
  High-speed Continuous Data Stream Capabilities with 32-bit Data Transfer
• Two Universal Synchronous/Asynchronous Receiver Transmitters (USART)
  Individual Baud Rate Generator, IrDA^® Infrared Modulation/Demodulation
  Support for ISO7816 T0/T1 Smart Card, Hardware Handshaking, RS485 Support
  Full Modem Line Support on USART1
• One Master/Slave Serial Peripheral Interfaces (SPI)
  8- to 16-bit Programmable Data Length, Four External Peripheral Chip Selects
• One Three-channel 16-bit Timer/Counter (TC)
  Three External Clock Inputs, Two Multi-purpose I/O Pins per Channel
  Double PWM Generation, Capture/Waveform Mode, Up/Down Capability
• One Four-channel 16-bit PWM Controller (PWMC)
• One Two-wire Interface (TWI)
  Master, Multi-Master and Slave Mode Support, All Two-wire Atmel EEPROMs Supported
  General Call Supported in Slave Mode
• One 8-channel 10-bit Analog-to-Digital Converter, Four Channels Multiplexed with Digital I/Os
• SAM-BA™
  Default Boot program
  Interface with SAM-BA Graphic User Interface
• IEEE^® 1149.1 JTAG Boundary Scan on All Digital Pins
• Four High-current Drive I/O lines, Up to 16 mA Each
• Power Supplies
  Embedded 1.8V Regulator, Drawing up to 100 mA for the Core and External Components
  1.8V or 3,3V VDDIO I/O Lines Power Supply, Independent 3.3V VDDFLASH Flash Power Supply
  1.8V VDDCORE Core Power Supply with Brownout Detector
• Fully Static Operation: Up to 48 MHz at 1.65V and 85°C Worst Case Conditions

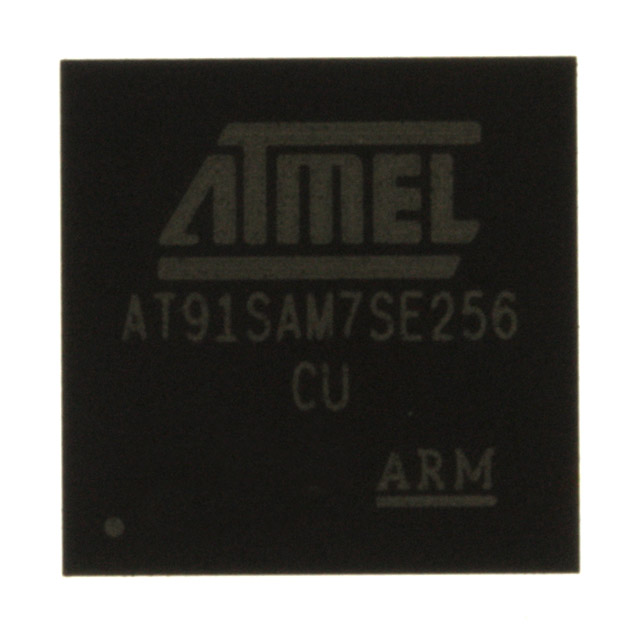

• Available in a 128-lead LQFP Green Package, or a 144-ball LFBGA Green Package
