Part Number: AT93C66



MFG: ATMEL

Package Cooled: DIP



Description: The AT93C46/56/57/66 provides 1024/2048/4096 bits of serial electrically erasable programmable read only memory (EEPROM...


Urgent Purchase

AT93C66 General Description


The AT93C46/56/57/66 provides 1024/2048/4096 bits of serial electrically erasable programmable read only memory (EEPROM) organized as 64/128/256 words of 16 bits each,when the ORG Pin is connected to VCC and 128/256/512 words of 8 bits each when it is tied to ground. The device is optimized for use in many industrial and commercial applications where low power and low voltage operations are essential.The AT93C46/56/57/66 is available in space saving 8-pin PDIP and 8-pin JEDEC and EIAJ SOIC packages.

AT93C66 Maximum Ratings

Operating Temperature................................ -55°C to +125°C
Storage Temperature................................... -65°C to +150°C
Voltage on Any Pin
with Respect to Ground......................................-1.0V to +7.0V
Maximum Operating Voltage............................................ 6.25V
DC Output Current.........................................................5.0 mA

AT93C66 Features

* Low Voltage and Standard Voltage Operation
  5.0 (VCC = 4.5V to 5.5V)
  2.7 (VCC = 2.7V to 5.5V)
  2.5 (VCC = 2.5V to 5.5V)
  1.8 (VCC = 1.8V to 5.5V)
* User Selectable Internal Organization
  1K: 128 x 8 or 64 x 16
  2K: 256 x 8 or 128 x 16
  4K: 512 x 8 or 256 x 16
* 3-Wire Serial Interface
* 2 MHz Clock Rate (5V) Compatibility
* Self-Timed Write Cycle (10 ms max)
* High Reliability
  Endurance: 1 Million Write Cycles
  Data Retention: 100 Years
  ESD Protection: >4000V
* Automotive Grade and Extended Temperature Devices Available
* 8-Pin PDIP, 8-Pin JEDEC and EIAJ SOIC, and 8-Pin TSSOP Packages

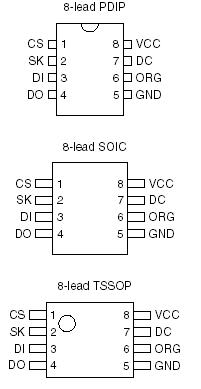

AT93C66 Connection Diagram

AT93C66 Connection DiagramAT93C66 Connection Diagram
