AT93C86A

Features:

• Low-voltage and Standard-voltage Operation
2.7 (VCC = 2.7V to 5.5V)
1.8 (VCC = 1.8V to 5.5V)
• User Selectable Internal Organization
16K: 2048 x 8 or 1024 x 16
• 3-wire Serial Interface
• Sequential Read Operation
• Schmitt Trigger, Filtered Inputs for Noise Suppression
• 2 MHz Clock Rate (5V) Compatibility
• Self-timed Write Cycle (10 ms max)
• High Reliability
Endurance: 1 Million Write Cycles
Data Retention: 100 Years
• Automotive Grade, Extended Temperature and Lead-Free/Halogen-Free Devices Available
• 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead MAP and 8-lead TSSOP Packages

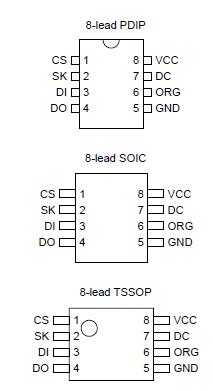

Pinout

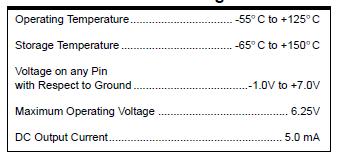

Specifications

Description

The AT93C86A provides 16384 bits of serial electrically erasable programmable read only memory (EEPROM) organized as 1024 words of 16 bits each when the ORG Pin is connected to VCC and 2048 words of 8 bits each when it is tied to ground. The device is optimized for use in many industrial and commercial applications where low power and low voltage operations are essential. The AT93C86A is available in space saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead MAP and 8-lead TSSOP packages.
