Part Number: ATAM894



MFG: ATMEL



D/C: 08+

Description: The ATAM894 is a member of the Atmel's family of 4-bit single chip microcontrollers with 8K * 8-bit EE...


Urgent Purchase

ATAM894 General Description


The ATAM894 is a member of the Atmel's family of 4-bit single chip microcontrollers with 8K * 8-bit EEPROM program memory. It is based on the 4-K MTP version ATAM893 and fully compatible with this MTP and the ROM versions ATAR090/890 and ATAR092/892.

ATAM894 Maximum Ratings

Parameters Symbol Value Unit
Supply voltage VDD 0.3 to +6.5 V
Input voltage (on any pin) VIN VSS 0.3 VIN VDD +0.3 V
Output short circuit duration tshort indefinite s
Operating temperature range Tamb 40 to +85 °C
Storage temperature range Tstg 40 to +130 °C
Soldering temperature (t 10 s) Tsld 260 °C

ATAM894 Features

• 8 K × 8-bit EEPROM
• EEPROM Programmable Options
• Read Protection for the EEPROM Program Memory
• 256 × 4-bit RAM
• 2 × 32 × 16-bit Data EEPROM
• Up to Seven External/Internal Interrupt Sources
• Eight Hardware and Software Interrupt Priorities
• 16 Bi-directional I/Os
• Wide Supply-voltage Range (1.8V to 6.5V)
• Very Low Sleep Current (< 1 µA)
• Synchronous Serial Interface (2-wire, 3-wire)
• Multifunction Timer/Counter with Prescaler/Interval Timer
• Voltage Monitoring Inclusive Lo_BAT Detect
• Watchdog, POR and Brown-out Function

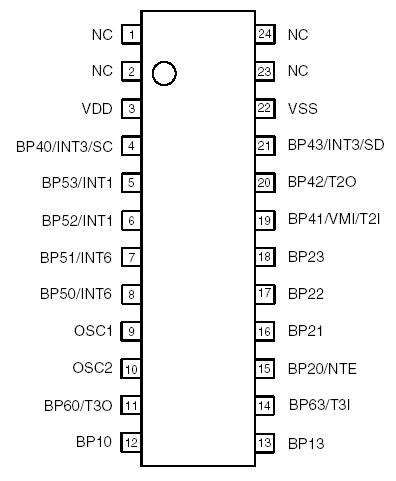

ATAM894 Connection Diagram

ATAM894 Connection Diagram
