Part Number: ATF-53189





Package Cooled: AGILENT

D/C: 06+

Description: Agilent Technologies's ATF-53189 is a single-voltage high linearity, low noise E-pHEMT FET packaged in a low cost surfa...


Urgent Purchase

ATF-53189 General Description


Agilent Technologies's ATF-53189 is a single-voltage high linearity, low noise E-pHEMT FET packaged in a low cost surface mount SOT89 package. The device is ideal as a high-linearity, low noise, medium-power amplifier. Its operating frequency range is from 50 MHz to 6 GHz.

ATF-53189 is ideally suited for Cellular/PCS and WCDMA wireless infrastructure, WLAN, WLL and MMDS application, and general purpose discrete E-pHEMT amplifiers which require medium power and high linearity. All devices are 100% RF and DC tested.

ATF-53189 Maximum Ratings


Symbol 		Parameter Units Absolute Maximum
Vds DrainSource Voltage[2] V 7
Vgs GateSource Voltage[2]
V -5 to 1.0
Vgd
Gate Drain Voltage [2] V -5 to 1.0

Ids
Drain Current[2] mA 300
Igs
Gate Current mA 20

Pdiss
Total Power Dissipation[3] W 1.0
Pin max.
RF Input Power dBm +24
Tch
Channel Temperature °C 150
Tstg
Storage Temperature °C -65 to 150

ATF-53189 Features

* Single voltage operation
* High Linearity and Gain
* Low Noise Figure
* Excellent uniformity in product specifications
* SOT 89 standard package
* Point MTTF > 300 years
* MSL-1 and lead-free
* Tape-and-Reel packaging option available

ATF-53189 Typical Application

* Front-end LNA Q1 and Q2, Driver or Pre-driver Amplifier for Cellular/ PCS and WCDMA wireless infrastructure
* Driver Amplifier for WLAN, WLL/RLL and MMDS applications
* General purpose discrete E-pHEMT for other high linearity applications

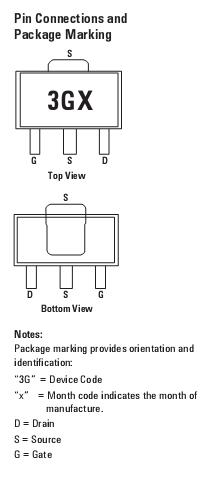

ATF-53189 Connection Diagram

ATF-53189 Connection Diagram

ATF-53189 datasheet

ATF-53189
PDF/DataSheet Download
