Part Number: ATF22LV10CZ

MFG: ATMEL

D/C: 08+

Description: The ATF22LV10CZ is a high performance CMOS (Electrically Erasable) Programmable Logic Device (PLD) which utilizes Atmel...

ATF22LV10CZ General Description

The ATF22LV10CZ is a high performance CMOS (Electrically Erasable) Programmable Logic Device (PLD) which utilizes Atmel's proven electrically erasable Flash memory technology and provides 25 ns speed with stand-by current of 25 mA maximum. All speed ranges are specified over the 3.0V to 5.5V range for industrial and commercial temperature ranges.
The ATF22LV10CZ provides a low voltage and edgesensing "zero" power CMOS PLD solution with "zero" standby power (5 mA typical). The ATF22LV10CZ powers down automatically to the zero power mode through Atmel's patented Input Transition Detection (ITD) circuitry when the device is idle. The ATF22LV10CZ is capable of operating at supply voltages down to 3.0V. Pin "keeper" circuits on input and output pins hold pins to their previous logic levels when idle, which eliminate static power consumed by pull-up resistors.
The ATF22LV10CZ macrocell incorporates a variable product term architecture. Each output is allocated from 8 to 16 product terms which allows highly complex logic functions to be realized. Two additional product terms are included to provide synchronous reset and asynchronous reset. These additional product terms are common to all 10 registers and are automatically cleared upon power up.
Register Preload simplifies testing. A Security Fuse prevents unauthorized copying of programmed fuse patterns.

ATF22LV10CZ Maximum Ratings

Temperature Under Bias......................................................................... -40°C to +85°C
Storage Temperature............................................................................ -65°C to +150°C
Voltage on Any Pin with Respect to Ground............................................. -2.0V to +7.0V ⁽¹⁾
Voltage on Input Pins with Respect to Ground During Programming...... -2.0V to +14.0V ⁽¹⁾Programming Voltage with Respect to Ground........................................ -2.0V to +14.0V ⁽¹⁾

ATF22LV10CZ Features

` 3.0V to 5.5V Operating Range
` Advanced Low Voltage, Zero Power,Electrically Erasable Programmable Logic Device
` Edge-Sensing "Zero" Power
` Low Voltage Equivalent of ATF22V10CZ
` "Zero" Standby Power (25 mA Maximum)
` Ideal for Battery Powered Systems
` 25 ns Maximum Propagation Delay
` CMOS and TTL Compatible Inputs and Outputs
` Latch Feature Hold Inputs to Previous Logic States
` Advanced E² Technology Reprogrammable 100% Tested
` High Reliability CMOS Process 20 Year Data Retention 100 Erase/Write Cycles 2,000V ESD Protection 200 mA Latchup Immunity
` Commercial and Industrial Temperature Ranges
` Dual-in-Line and Surface Mount Standard Pinouts

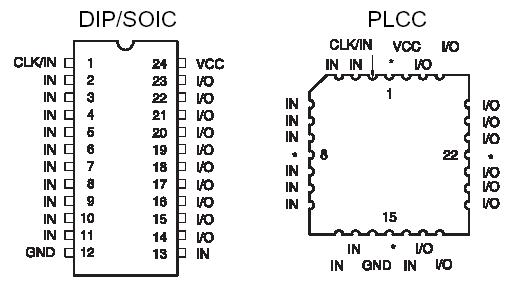

ATF22LV10CZ Connection Diagram
