ATF22V10CQ-15JC

Supply Current :
Delay Time : 15 ns
Operating Supply Voltage : 5 V
Maximum Operating Frequency : 83.3 MHz
Number of Macrocells : 10
Number of Programmable I/Os : 10
Package / Case : PLCC-28
Maximum Operating Temperature : + 70 C
Minimum Operating Temperature : 0 C
Logic Family : ATF22V10CQ


Features:

• Industry-standard Architecture
Low-cost, Easy-to-use Software Tools
• High-speed, Electrically Erasable Programmable Logic Devices
5 ns Maximum Pin-to-pin Delay
• CMOS- and TTL-compatible Inputs and Outputs
Latch Feature Holds Inputs to Previous Logic States
• Pin-controlled Standby Power (10 µA Typical)
• Advanced Flash Technology
Reprogrammable
100% Tested
• High-reliability CMOS Process
20-year Data Retention
100 Erase/Write Cycles
2,000V ESD Protection
200 mA Latch-up Immunity
• Dual Inline and Surface Mount Packages in Standard Pinouts
• PCI-compliant
• True Input Transition Detection "Z" and "QZ" Version

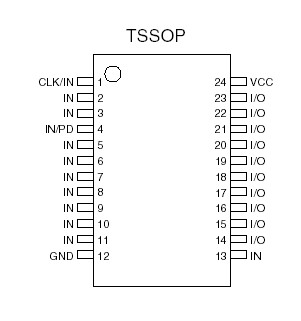

Pinout




Specifications

Temperature under Bias ............................... -40°C to +85°C
Storage Temperature ................................. -65°C to +150°C
Voltage on Any Pin with
Respect to Ground .........................................-2.0V to +7.0V⁽¹⁾
Voltage on Input Pins
with Respect to Ground
during Programming .....................................-2.0V to +14.0V⁽¹⁾
Programming Voltage with
Respect to Ground .......................................-2.0V to +14.0V⁽¹⁾


Description

The ATF22V10CQ-15JC is a high-performance CMOS (electrically erasable) programmable logic device (PLD) that utilizes Atmel's proven electrically erasable Flash memory technology. Speeds down to 5 ns and power dissipation as low as 100 µA are offered. All speed ranges are specified over the full 5V ± 10% range for industrial temperature ranges, and 5V ± 5% for commercial temperature ranges.

Several low-power options of ATF22V10CQ-15JC allow selection of the best solution for various types of power-limited applications. Each of these options significantly reduces total system power and enhances system reliability.

Parameters:

Technical/Catalog Information	ATF22V10CQ-15JC
Vendor	Atmel
Category	Integrated Circuits (ICs)
Speed	15ns
Package / Case	28-PLCC
Voltage - Input	5V
Programmable Type	EE PLD
Number of Macrocells	10
Packaging	Tube
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	ATF22V10CQ 15JC ATF22V10CQ15JC
