Part Number: ATF750CL



MFG: ATMEL

Package Cooled: PLCC-44

D/C: 00+

Description: The ATF750C(L)s are twice as powerful as most other 24-pin programmable logic devices. Increased product terms, sum ter...


Urgent Purchase

ATF750CL General Description


The ATF750C(L)s are twice as powerful as most other 24-pin programmable logic devices. Increased product terms, sum terms, flip-flops and output logic configurations translate into more usable gates. High-speed logic and uniform, predictable delays

ATF750CL Maximum Ratings

Temperature Under Bias..................................... -55 to +125
Storage Temperature ........................................ -65 to +150
Voltage on Any Pin with
Respect to Ground ...........................................-2.0V to +7.0V(1)
Voltage on Input Pins
with Respect to Ground
During Programming.......................................-2.0V to +14.0V(1)
Programming Voltage with
Respect to Ground .........................................-2.0V to +14.0V(1)

ATF750CL Features

• Advanced, High-speed, Electrically-erasable Programmable Logic Device
            Superset of 22V10
            Enhanced Logic Flexibility
            Backward Compatible with ATV750B/BL and ATV750/L
• Low-power Edge-sensing "L" Option with 1 mA Standby Current
• D- or T-type Flip-flop
• Product Term or Direct Input Pin Clocking
• 7.5 ns Maximum Pin-to-pin Delay with 5V Operation
• Highest Density Programmable Logic Available in 24-pin Package
            Advanced Electrically-erasable Technology
            Reprogrammable
            100% Tested
• Increased Logic Flexibility
            42 Array Inputs, 20 Sum Terms and 20 Flip-flops
• Enhanced Output Logic Flexibility
            All 20 Flip-flops Feed Back Internally
            10 Flip-flops are also Available as Outputs
• Programmable Pin-keeper Circuits
• Dual-in-line and Surface Mount Package in Standard Pinouts
• Commercial and Industrial Temperature Ranges
• 20-year Data Retention
• 2000V ESD Protection
• 1000 Erase/Write Cycles

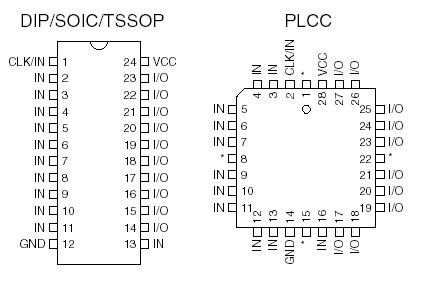

ATF750CL Connection Diagram

ATF750CL Connection Diagram
