Features: Support WMA Decoder Digital Voice Recording with Actions Speech Algorithm 24 bits DSP Core with memory and on-chip Debug Support Unit (DSU) Integrated 8-bit MCU with DSU External up to 2(cs) x 64M/128M/256M/512M/1G/2G bytes Nand type Flash accessed by MCU or DMA Built-in DMA, CTC (C...
ATJ2085: Features: Support WMA Decoder Digital Voice Recording with Actions Speech Algorithm 24 bits DSP Core with memory and on-chip Debug Support Unit (DSU) Integrated 8-bit MCU with DSU External up to...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Support WMA Decoder
Digital Voice Recording with Actions Speech Algorithm
24 bits DSP Core with memory and on-chip Debug Support Unit (DSU)
Integrated 8-bit MCU with DSU
External up to 2(cs) x 64M/128M/256M/512M/1G/2G bytes Nand type Flash accessed by MCU or DMA
Built-in DMA, CTC (Counter/Timer Controller) and interrupt controller for MCU
Energy saving dynamic power management (PMU)
Support USB 2.0(FS), Write speed(Max): 955k byte/s; Read speed(Max): 1033k byte/s
Build in Stereo 18-bit Sigma-Delta DAC
Build in Key Scan Circuit (3*3) and GPIO
I²C interface supports Master/Slave mode, with changeable slave address
Support external 8080 Interface LCM driver
Support FM Radio input and 32 levels volume control
Support Stereo 16-bit Sigma-Delta ADC for Microphone/FM Input, sample rate at 8/12/16/22/24/32/48KHz
MCU run at 24.576MHz(TYP), up to 60MHz
SNR: 90dB (DAC TYP)
Headphone driver output 2x11mW @16 Ohm(TYP)
Operating Voltage: IO: 3.0V(TYP), Core: 2.0V(TYP)
Standby Leakage Current: VCC: 35uA@3.0V(TYP) , VDD: 110uA@2.0V(TYP)
Low Power Consumption, designed for greater than 15 (TYP) hours of operation on a single battery life. (<65mW at typical MP3 decoder solution; <90mW at typical WMA decoder solution)

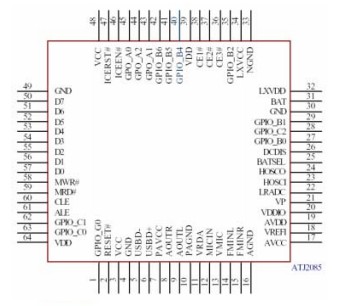

64-pin (10x10mm) LQFP package
Parameter |
Symbol |
l Condition |
Rating |
Unit |
Supply voltage |
VDD |
2.0V |
-0.5 to +2.7 |
V |
VCC |
3.0V |
-0.5 to +3.6 |
V | |
Input voltage |
Vi |
VCC >= 3.3 |
-0.5 to +3.9 |
V |
VCC < 3.3 |
-0.5 to VCC+0.6 |
V | ||
Storage |
Tstg |
-65 to +150 |
||
temperature |
ATJ2085 is a single-chip for flash-based digital music player. It includes an audio decoder with a high performance DSP, ADPCM record capabilities and USB interface for downloading music and uploading voice recordings. ATJ 2085 also provides an interface to flash memory, LED, button and switch inputs, headphone, and microphone, and FM radio input and control. ATJ 2085's programmable architecture supports the MP3, WMA and other digital audio standards. For devices like USB-Disk, ATJ2085 can act as a USB mass storage slave device to personal computer system. Its low power consumption allows a long battery life, and an efficient flexible on-chip DC-DC converter allows many different battery configurations, including 1xAA, 1xAAA, 2xAA, 2xAAA and Li-on. Built-in Sigma-Delta DAC & a headphone driver to directly drive low impedance headphones. The ADC includes inputs for both Microphone and Analog Audio in to support voice recording and FM radio integration features. Thus, the ATJ2085 provides a true 'ALL-IN-ONE' solution that is ideally suited for highly optimized digital audio players with mass storage function.
