SeekIC No. : 004127841 Detail

ATR2406-PNSG: IC IF ISM TXRX 2.4GHZ 32QFN

ATR2406-PNSG Data Sheet

Get Latest Price

Part Number:: ATR2406-PNSG
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ATR2406 evaluate
Features: • Fully Integrated Low IF Receiver• Fully Integrated GFSK Modulator for 72, ...
ATR2406-DEV-BOARD evaluate
US $175.34 - 175.34 / Piece

RF Development Tools COM-RADIO MODULE ISM 2.4GHZ TRX

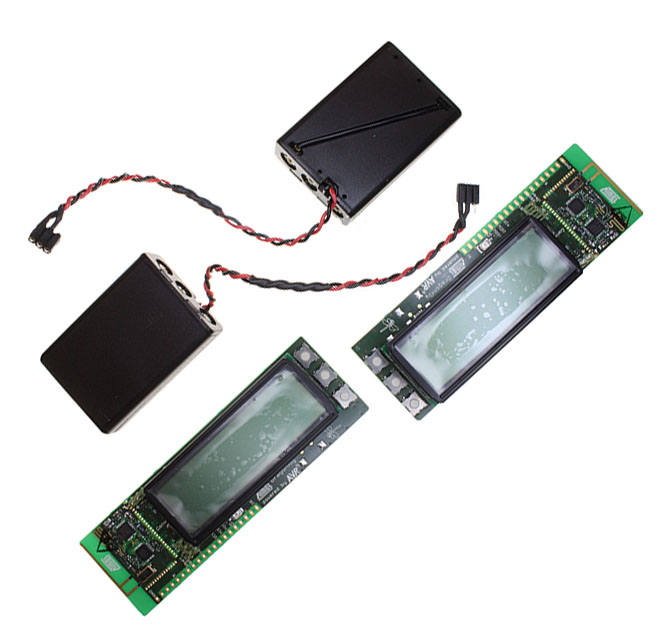

ATR2406-DEV-BOARD2 evaluate
US $175.34 - 175.34 / Piece

RF Development Tools COM-EVAL BOARD ATR2406+T7024

Product Details

Quick Details

Series:	-	Processor Series :	ATA5795
Manufacturer:	Atmel	Frequency:	2.4GHz
Data Rate - Maximum:	1.152Mbps	Modulation or Protocol:	DSSS, GFSK
Applications:	Wireless Game Controllers	Power - Output:	4dBm
Sensitivity:	-93dBm	Voltage - Supply:	2.9 V ~ 3.6 V
Current - Receiving:	57mA	Current - Transmitting:	42mA
Data Interface:	PCB, Surface Mount	Memory Size:	-
Antenna Connector:	PCB, Surface Mount	Operating Temperature:	-10°C ~ 60°C
Package / Case:	32-VFQFN Exposed Pad

Description

Series: -
Frequency: 2.4GHz
Data Interface: PCB, Surface Mount
Memory Size: -
Antenna Connector: PCB, Surface Mount
Sensitivity: -93dBm
Package / Case: 32-VFQFN Exposed Pad
Power - Output: 4dBm
Packaging: Tape & Reel (TR)
Manufacturer: Atmel
Operating Temperature: -10°C ~ 60°C
Voltage - Supply: 2.9 V ~ 3.6 V
Modulation or Protocol: DSSS, GFSK
Current - Transmitting: 42mA
Data Rate - Maximum: 1.152Mbps
Applications: Wireless Game Controllers
Current - Receiving: 57mA

Parameters:

Technical/Catalog Information	ATR2406-PNSG
Vendor	Atmel
Category	RF and RFID
Frequency	2.4GHz
Data Rate - Maximum	1.152Mbps
Modulation or Protocol	DSSS, GFSK
Applications	Wireless Game Controllers
Power - Output	4dBm
Sensitivity	-93dBm
Voltage - Supply	2.9 V ~ 3.6 V
Current - Receiving	57mA
Current - Transmitting	42mA
Package / Case	32-QFN
Operating Temperature	-10°C ~ 60°C
Data Interface	PCB, Surface Mount
Antenna Connector	PCB, Surface Mount
Packaging	Tape & Reel (TR)
Memory Size	-
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	ATR2406 PNSG ATR2406PNSG
